All Stainless Steel Safety Pressure Gauge
Cooper alloy Bourbon tube Safety Pressure Gauge With Stainless Steel Case
This safety pressure gauge is suitable for various conditions where solid safety pressure gauge explosion proof layer, it is used in measuring medias which are corrosive, non-viscous or non-crystalli-zing gas or liquid.
Executive standard
GB/TI226-2001
Accuracy class
1.6%
Measuring range
0-250Mpa
Product Introduction

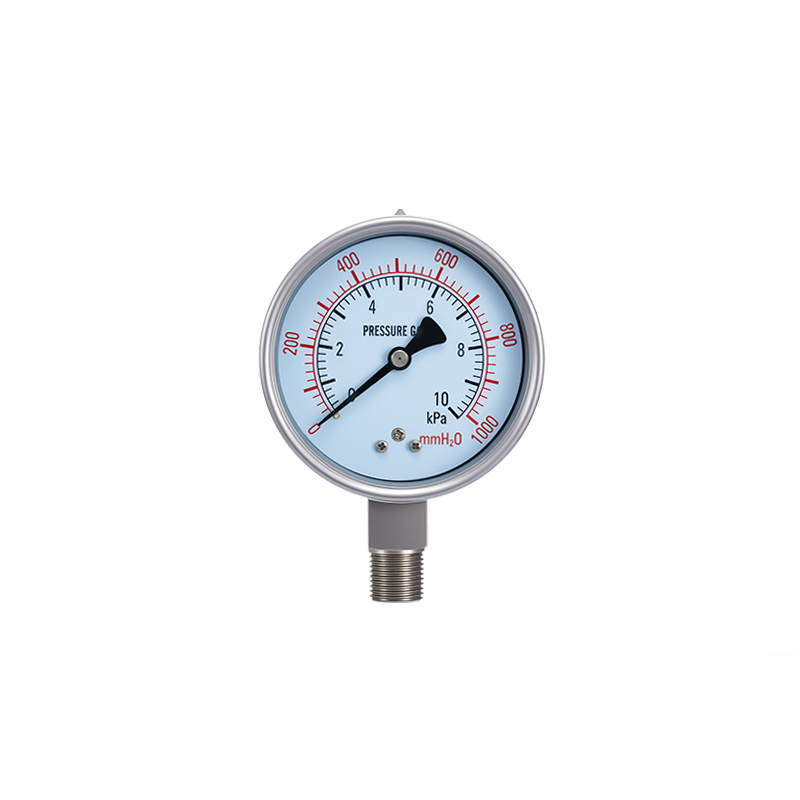

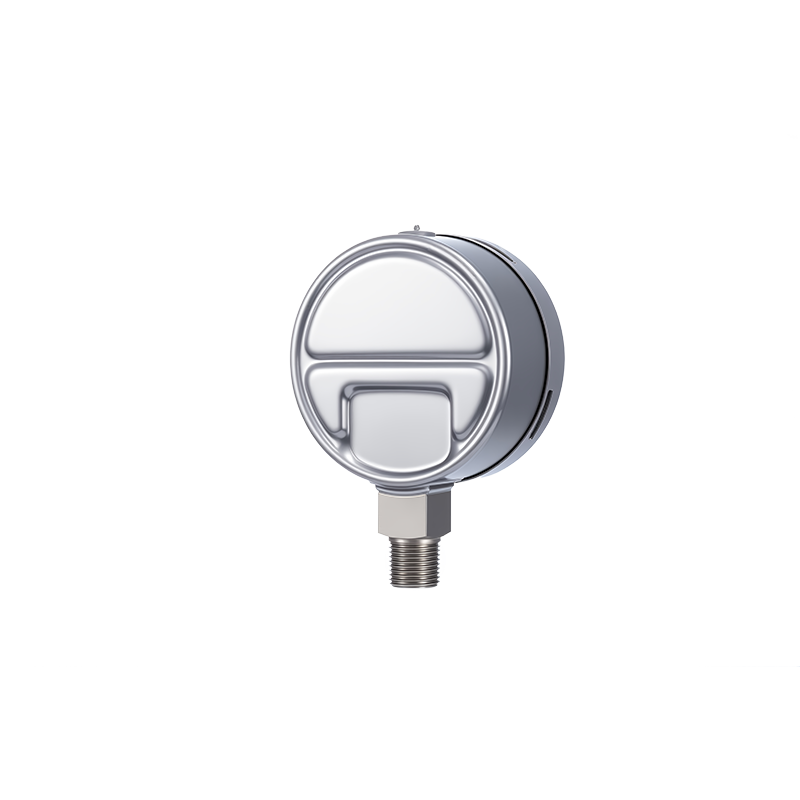

Product name: All Stainless Steel Safety Pressure Gauge
Product features: Safety explosion proof layers
Accuracy class: 1.6%
Measuring range: 0-250MPa
Case material: Stainless steel case

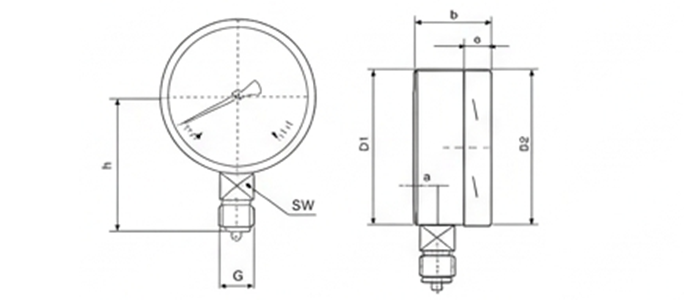

Diameter size: See the picture
Protection degree: common IP54, liquid-filling IP65
| Diameter (ΦD) | Dimension | Weight (kg) | |||||||||
| a | b | b1 | D1 | D2 | e | f | G | h | SW | ||
| 63 | 17.5 | 42 | 42 | 63 | 63 | 14.5 | 18.5 | G1/4A | 53 | 14 | 0.2 |
| 100 | 24 | 57.5 | 57.5 | 101 | 100 | 17.5 | 30 | G1/2A | 87 | 22 | 0.65 |
| 160 | 24 | 58″ | — | 161 | 160 | 17.5 | — | G1/2A | 118 | 22 | 1.30″ |
| Technical Parameter | |
| Executive standard: GB/T1226-2001 | Bourbon tube: SUS304 or SUS316 |
| Diameter: Ø63/100/160 (mm) | Machine core of gauge: SUS304 |
| Temperature of working environment: -20~60°C | Gauge glass: explosion proof double-layer safety glass |
| Temperature of working media: ≤100°C | |
| Gauge case: stainless steel, with safety explosion proof layers and safety pressure relief cover. | Pointer: black aluminum. |
| Dial: white aluminum, black lettering MPa (or bar/psi…) | |
| Liquidfilling hole cover on the top of liquid-filling type can be opened to balance the pressure inside | Connection thread: |
| under the outside pressure range of 0.6MPa. | Ø63—M14×1.5 or special requirement |
| Connect of the gauge: SUS304(or SUS316) | Ø100/160—M20×1.5 or special requirement |
| Pressure Limitation | |
| Diameter: 63mm | Diameter: 100/150/160mm |
| Steady: 3/4* full value | Steady: 3/4* full scale value |
| Fluctuating: 2/3* full scale value | Fluctuating: 2/3* full scale value |
| Short time: 1.2* full scale value | Short time: 1.3 full scale value |
Product Advantages
Product Advantages
Competitive Advantages
01
R&D & Heritage
With decades of independent research and development experience, we have overcome core technical challenges in complex working conditions such as earthquake resistance and stainless steel.
02
Supply Specifications
With more than 10 professional production lines and hundreds of specifications available for immediate or custom orders, we possess strong capabilities for mass delivery and flexible production.
03
Durability
Designed specifically for harsh environments such as petroleum and chemical industries, the product boasts superior corrosion resistance and vibration resistance compared to the industry average, resulting in more stable operation.
04
Service Dimension
It achieves full-chain coverage from “basic instruments” to “intelligent transmitters” and “automation systems”, providing complete control solutions.
Target Audience
Energy
Heavy Industry
Manufacturing
Distributors
Laboratory
Target Audience
Operating Instructions
Operating Instructions
Premium Materials & Precision Engineering
Exceptional measurement performance begins with uncompromising detail. We select high-standard industrial materials and employ precision machining for every core component, ensuring long-term stability and accuracy even under extreme pressure and corrosive conditions.
Advanced Pressure System
316L Stainless Steel Bourdon tube, connection, and restrictor screw. High-grade construction ensures superior fatigue and corrosion resistance.
High-Precision
Movement
Hardened precision gear sets. Provides smooth mechanical transmission and minimizes hysteresis for accurate reading feedback.
Hermetic Protection
Case
SS case, sealed cover, and safety glass. A hermetic design that guards internal parts against environmental contaminants and corrosive media.
Anti-Vibration
Filling
High-purity silicone or glycerin filling. Absorbs intense vibrations and pressure pulsations to ensure stable readings and long-term durability.
Premium Materials & Precision Engineering
Exceptional measurement performance begins with uncompromising detail. We select high-standard industrial materials and employ precision machining for every core component, ensuring long-term stability and accuracy even under extreme pressure and corrosive conditions.
Advanced Pressure System
316L Stainless Steel Bourdon tube, connection, and restrictor screw. High-grade construction ensures superior fatigue and corrosion resistance.
High-Precision
Movement
Hardened precision gear sets. Provides smooth mechanical transmission and minimizes hysteresis for accurate reading feedback.
Hermetic Protection
Case
SS case, sealed cover, and safety glass. A hermetic design that guards internal parts against environmental contaminants and corrosive media.
Anti-Vibration
Filling
High-purity silicone or glycerin filling. Absorbs intense vibrations and pressure pulsations to ensure stable readings and long-term durability.
Full Life-Cycle Service & Support
Tailored Solutions
Providing precision, one-on-one technical selection based on your specific conditions to ensure the most cost-effective and optimized solutions.
Commitment to Reliability
We commit to rapid response for all inquiries, providing expert troubleshooting and a solid quality warranty to keep your operations running smoothly.
Full Life-Cycle Service & Support
Tailored Solutions
Providing precision, one-on-one technical selection based on your specific conditions to ensure the most cost-effective and optimized solutions.
Commitment to Reliability
We commit to rapid response for all inquiries, providing expert troubleshooting and a solid quality warranty to keep your operations running smoothly.
Product Usage Help
Craftsmanship & Technology
Fast Q&A Center. We provide quick answers to your questions.
Range selection (typically between 1/3 and 2/3 of the actual pressure), accuracy class, dial diameter (D), and connection thread (M20x1.5, NPT, etc.).
The main purpose of filling with silicone oil or glycerin is to provide shock and vibration resistance, protecting the internal movement and allowing the instrument to operate stably, accurately, and reliably for a long time under harsh conditions involving vibration, pulsation, and frequent starts and stops.
A stainless steel pressure gauge is a durable, corrosion-resistant pressure measurement instrument where key components (especially the case, wetted parts like the Bourdon tube, socket, and internals) are made from stainless steel (typically 304SS for the case and 316SS for process-contact parts).
It measures gas or liquid pressure and displays it on a dial, commonly using a Bourdon tube mechanism that flexes under pressure to move the pointer.
Pressure surges (also known as water hammer or pressure spikes) are one of the most common causes of damage to pressure gauges. The most effective and reliable way to prevent them is to install a pulsation dampener (snubber) directly in front of the gauge — it absorbs sudden pressure spikes and slows down the rate of change, protecting the internal mechanism from violent shocks.
The service life of a mechanical pressure gauge (such as Bourdon tube types commonly used in industrial applications) typically ranges from 5 to 15 years under normal operating conditions, but this varies widely depending on the environment, usage, and maintenance.
