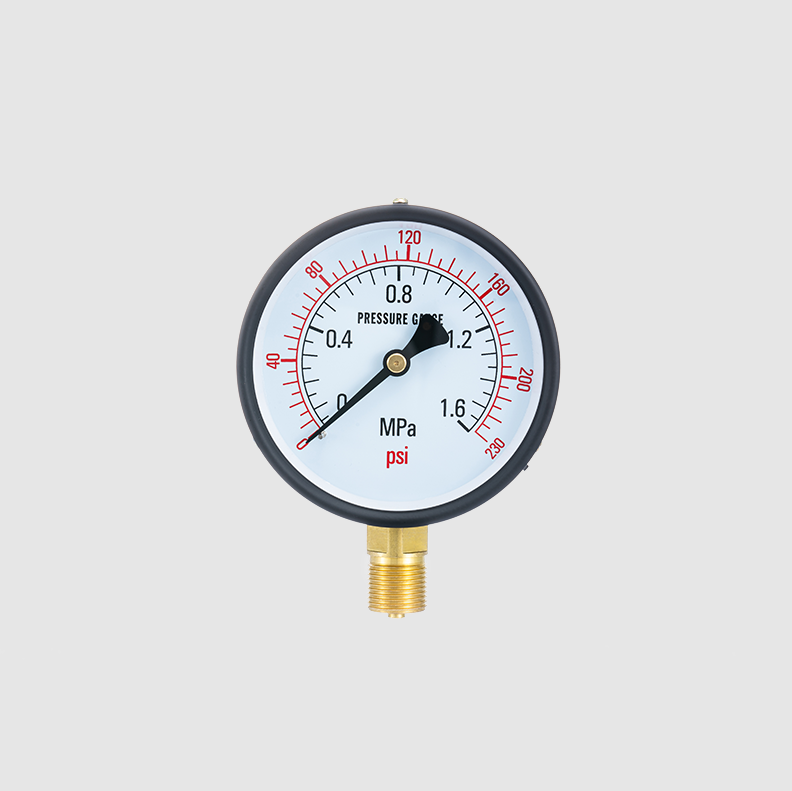

This 0-160 PSI air pressure gauge uses stainless steel housing and phosphor bronze internal parts to provide real-time monitoring with ± 1.6% accuracy for industrial pneumatic systems, air compressors and pressure vessels. IMT, as the source manufacturing plant with more than 10 production lines, all products are directly issued by the original factory, eliminating the price difference between middlemen and ensuring that we can provide you with highly competitive ex-factory prices and efficient mass customization services.
0-160 PSI air pressure gauge is mainly used in industrial air compressor equipment, pneumatic control cabinet, water treatment filtration system and heavy vehicle air pressure monitoring.
the dial is marked with PSI and Bar units at the same time, and is printed with anti-ultraviolet ink. Even under outdoor strong light or long-term use, the scale is still clear and does not fade, effectively avoiding manual reading errors.
the internal filling of high purity glycerin, can effectively absorb the severe vibration and pressure pulse in the industrial pipeline, so that the pointer runs smoothly, to avoid the internal parts wear caused by the pointer jitter.
the shell is made of high-quality stainless steel, with excellent corrosion resistance and sealing, and the protection level reaches IP65, which can easily cope with the harsh industrial production environment such as humidity and salt spray.
The pressure-sensitive bellows and movement are made of high-precision phosphor bronze. After 24-hour fatigue test, excellent linearity and return error are maintained under 160 PSI full-scale cyclic pressure.
A safety rubber pressure relief hole is arranged behind the watch case. When the pressure in the watch is overloaded due to extreme conditions, the pressure relief hole will actively pop up to release the pressure to prevent the front glass from bursting and hurting people and ensure the safety of maintenance personnel.
standard 1/4 NPT thread interface is adopted, and strict thread gauge testing is carried out to ensure seamless matching with mainstream air compressors and pneumatic components, and tight installation without leakage.
| Parameter Items | Specifications |
| Measurement range | 0-160 PSI (0-11 Bar) |
| Accuracy level | ANSI B40.1 Grade B (±2%-1%-2%) |
| Case diameter | 2.5 inches (63mm) |
| Interface material | Brass or 316L stainless steel |
| Connection location | Radial or axial mounting |
| Ambient temperature limit | -20°C to +60°C |
| Protection level | IP65 (dustproof, water-resistant) |
| Movement material | Copper alloy precision movement |
| Window Material | Tempered glass or polycarbonate |
The 0-160 PSI pressure gauge produced by IMT is far superior to similar products in structural stability. Its shell wall thickness increases by 20%, and it can withstand higher strength mechanical impact without deformation. In addition, we use a unique movement lubrication process, even in the extreme low temperature environment of minus 20 degrees, the pointer can still respond flexibly, and there will be no stiction.

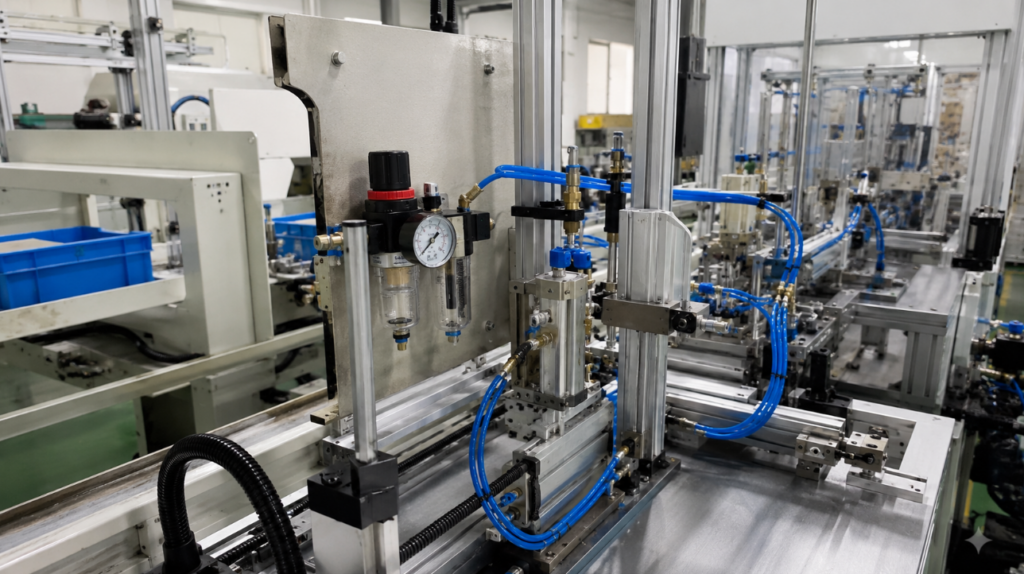

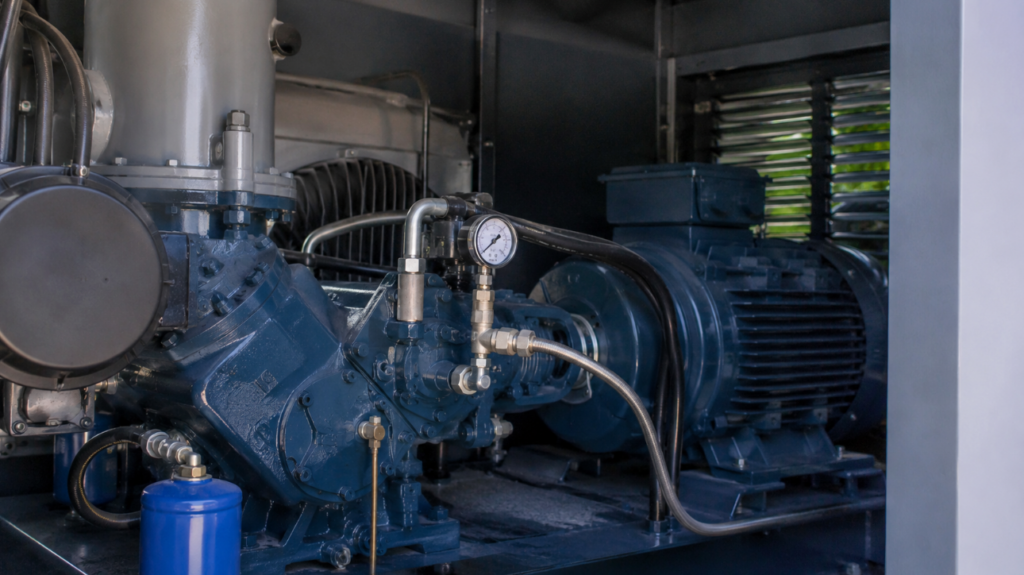

Provide standard pressure display components for all types of reciprocating or screw air compressors to help engineers ensure that the system output pressure is always controlled within the rated 160 PSI safety range.

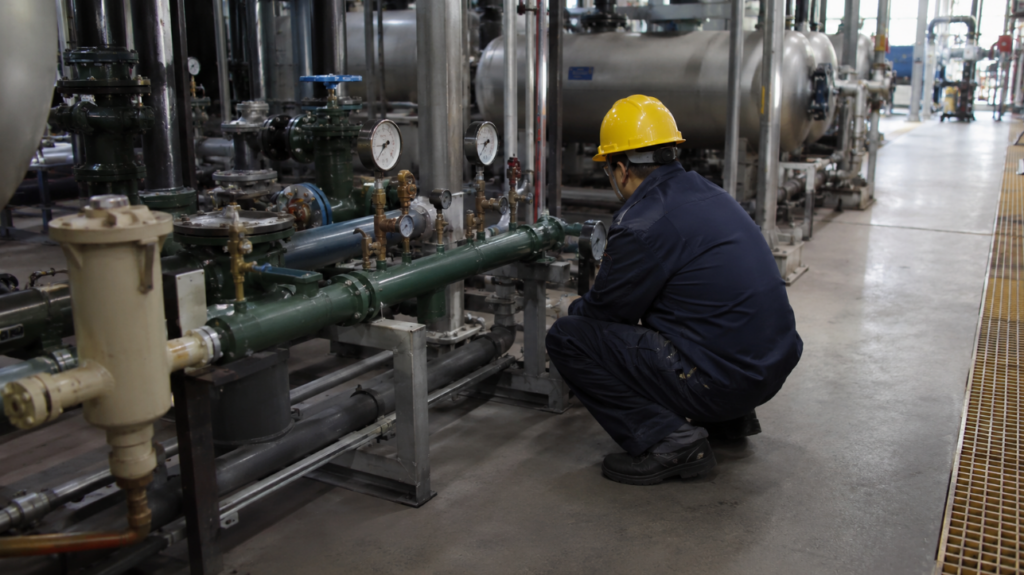

suitable for daily inspection of food, chemical and machinery manufacturing plants, to help technicians quickly identify abnormal pneumatic pipeline pressure and prevent downstream equipment damage caused by pressure overload.
for B2B enterprises that need to purchase standardized and cost-effective pressure gauges in bulk, to meet their stringent requirements for part consistency, long-term supply stability and cost control.

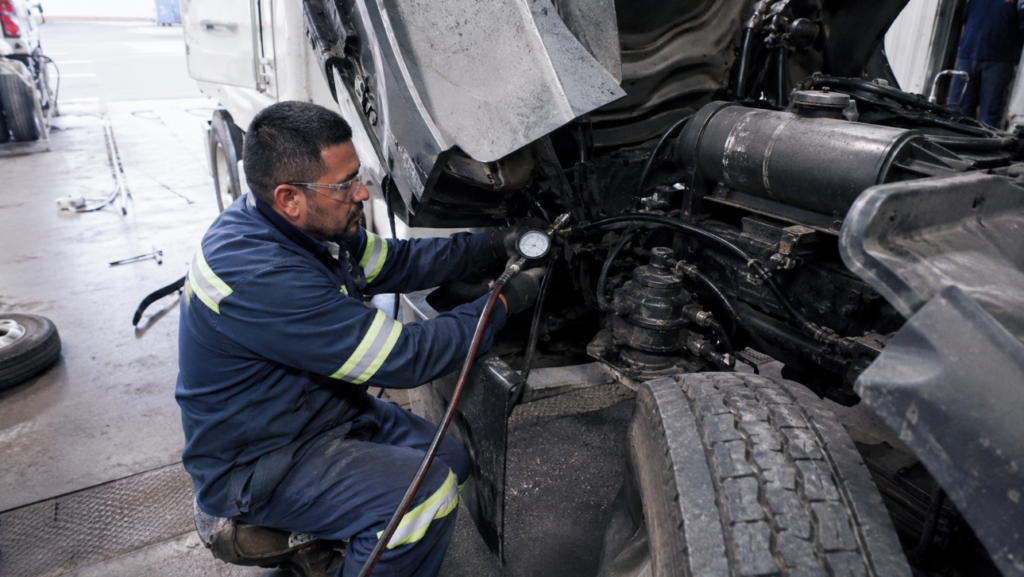

suitable for heavy trucks and special vehicles of gas road maintenance personnel, used to monitor the real-time pressure of the brake system or air suspension, to ensure that the driving safety indicators meet the specifications.
When installing the 0-160 PSI pressure gauge, make sure that the dial is kept vertical. Use a wrench to tighten the joint. It is strictly forbidden to directly pull the watch case to rotate by hand to prevent the internal movement from moving.
After the oil-filled pressure gauge is installed, cut off the small tip of the sealing rubber plug on the top of the gauge. This balances the atmospheric pressure inside and outside the meter, ensuring that the measurement results are not affected by changes in air pressure.
normal working pressure should be maintained between 1/3 and 2/3 of the range. When measuring 160 PSI range, it is recommended that the long-term working pressure should not continuously exceed 100 PSI.
In order to ensure production safety, it is recommended to send the pressure gauge to a professional organization for calibration every six months to one year to ensure that the reading accuracy always meets the standard of 1.6 or higher.
certificate
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
This 0-160 PSI air pressure gauge uses stainless steel housing and phosphor bronze internal parts to provide real-time monitoring with ± 1.6% accuracy for industrial pneumatic systems, air compressors and pressure vessels. IMT, as the source manufacturing plant with more than 10 production lines, all products are directly issued by the original factory, eliminating the price difference between middlemen and ensuring that we can provide you with highly competitive ex-factory prices and efficient mass customization services.
0 to 160 PSI
Range
Class 1.6
Accuracy class
316 stainless steel
Shell material
the dial is marked with PSI and Bar units at the same time, and is printed with anti-ultraviolet ink. Even under outdoor strong light or long-term use, the scale is still clear and does not fade, effectively avoiding manual reading errors.
the internal filling of high purity glycerin, can effectively absorb the severe vibration and pressure pulse in the industrial pipeline, so that the pointer runs smoothly, to avoid the internal parts wear caused by the pointer jitter.
the shell is made of high-quality stainless steel, with excellent corrosion resistance and sealing, and the protection level reaches IP65, which can easily cope with the harsh industrial production environment such as humidity and salt spray.
The pressure-sensitive bellows and movement are made of high-precision phosphor bronze. After 24-hour fatigue test, excellent linearity and return error are maintained under 160 PSI full-scale cyclic pressure.
A safety rubber pressure relief hole is arranged behind the watch case. When the pressure in the watch is overloaded due to extreme conditions, the pressure relief hole will actively pop up to release the pressure to prevent the front glass from bursting and hurting people and ensure the safety of maintenance personnel.
standard 1/4 NPT thread interface is adopted, and strict thread gauge testing is carried out to ensure seamless matching with mainstream air compressors and pneumatic components, and tight installation without leakage.
| Parameter Items | Specifications |
| Measurement range | 0-160 PSI (0-11 Bar) |
| Accuracy level | ANSI B40.1 Grade B (±2%-1%-2%) |
| Case diameter | 2.5 inches (63mm) |
| Interface material | Brass or 316L stainless steel |
| Connection location | Radial or axial mounting |
| Ambient temperature limit | -20°C to +60°C |
| Protection level | IP65 (dustproof, water-resistant) |
| Movement material | Copper alloy precision movement |
| Window Material | Tempered glass or polycarbonate |
Provide standard pressure display components for all types of reciprocating or screw air compressors to help engineers ensure that the system output pressure is always controlled within the rated 160 PSI safety range.
suitable for daily inspection of food, chemical and machinery manufacturing plants, to help technicians quickly identify abnormal pneumatic pipeline pressure and prevent downstream equipment damage caused by pressure overload.
for B2B enterprises that need to purchase standardized and cost-effective pressure gauges in bulk, to meet their stringent requirements for part consistency, long-term supply stability and cost control.
suitable for heavy trucks and special vehicles of gas road maintenance personnel, used to monitor the real-time pressure of the brake system or air suspension, to ensure that the driving safety indicators meet the specifications.
When installing the 0-160 PSI pressure gauge, make sure that the dial is kept vertical. Use a wrench to tighten the joint. It is strictly forbidden to directly pull the watch case to rotate by hand to prevent the internal movement from moving.
After the oil-filled pressure gauge is installed, cut off the small tip of the sealing rubber plug on the top of the gauge. This balances the atmospheric pressure inside and outside the meter, ensuring that the measurement results are not affected by changes in air pressure.
normal working pressure should be maintained between 1/3 and 2/3 of the range. When measuring 160 PSI range, it is recommended that the long-term working pressure should not continuously exceed 100 PSI.
In order to ensure production safety, it is recommended to send the pressure gauge to a professional organization for calibration every six months to one year to ensure that the reading accuracy always meets the standard of 1.6 or higher.
