Bi-metal Predictor Thermometer

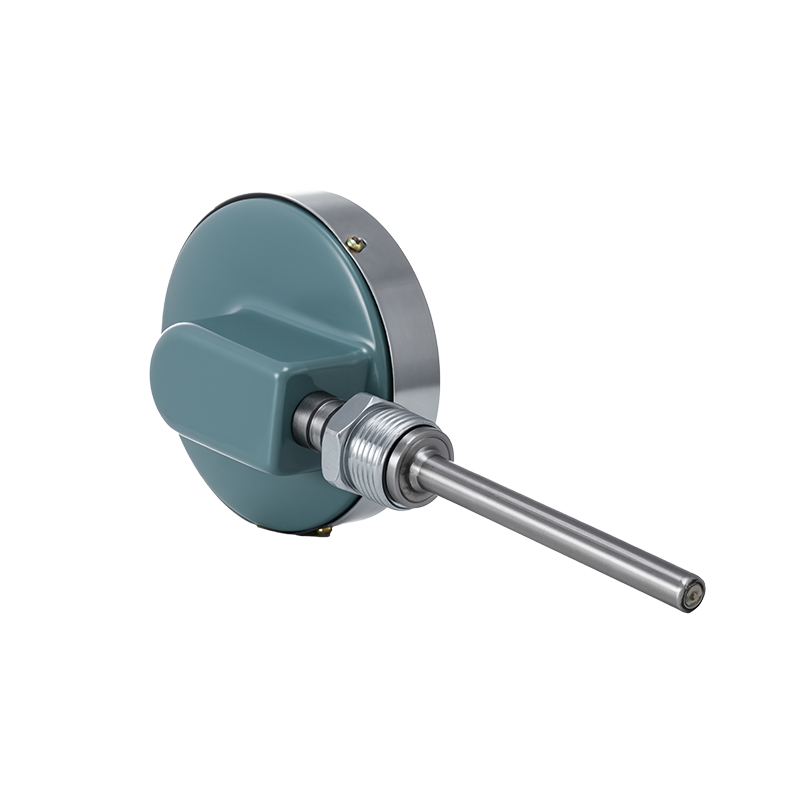

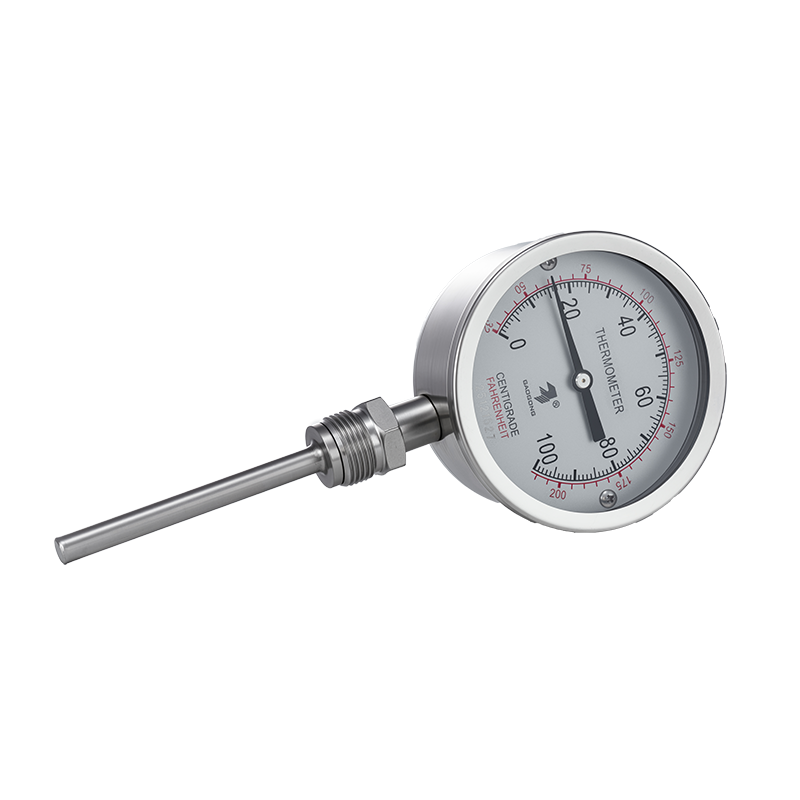

0-150℃ Degree Bottom Mounted Bi- metal Thermometer
Application
WSS WSSX series bi-metal thermometer is the instrument which suit for low or middle temperature measurement.
It can be used for temperature measurement for gas and liquid.
The electric contact bi-metal thermometer can measure the temperature Pand when temp exceed the certain value, it can send the controlling signal and alarm.
Product Introduction
Product name: Bi-metal thermometer
Accuracy class: 1.5%
Pressure resistance: 6Mpa
Using temp: -20~60℃℃
Mounting Type: Bottom type
Maximum working voltage: 220V.
| Case | A | B | C | D | Remarks |
| Aluminum case | Φ 60$ | 18 | 5 | axial | |
| 18 | 30 | 47 | radial | ||
| Φ 100$ | 24 | 8 | axial | ||
| 24 | 37 | 60 | radial | ||
| Φ 150$ | 21 | 8 | axial | ||
| 21 | 38 | 65 | radial |
| Size (mm) | Code | View angle | Code | Mounting pattern | Code | Additional function | Code |
| 60 | 3 | axial | 0 | movable outer thread | 1 | out-door use | J |
| 100 | 4 | radial | 1 | movable inner thread | 2 | anti-corrosion | F |
| 150 | 5 | 135° | 2 | fixed thread | 3 | ||
| 111 | 4 | All angle | 6 | ||||
| 161 | 5 | All angle | 8 | Center back |
| Model | WS-71 WSX-71 WSS-301 WSS-311 WSS-321 | WS-70 | WSS-401 WSS-411 WSSX-401 WSSX-411 WSS-421 WSSX-421 | WSS-401 FWSS-411 FWSSX-401 FWSSX-411 FWSS-421 FWSSX-421F | WSS-501 WSS-511 WSSX-501 WSSX-511 | WSS-501 FWSS-511F | WSS-461 WSS-561 WSSX-461 WSS-481 WSS-581 WSSX-481 |
| Measuring range (°C) | -60~600 every class | ||||||
| Size (mm) | Φ60 | Φ68 | Φ100 | Φ100 | Φ150 | Φ150 | Φ100, Φ150 |
| Thermowell diameter (mm) | Φ6, Φ8, Φ10, Φ12 | ||||||
| Testing bar length (mm) | L=75~2000 (According to requirement) | ||||||
| Case | Aluminum case/St.st.case | Aluminum case | Aluminum case | St.st.case | Aluminum case | St.st.case | St.st.case |
| View angle | Radial, axial, 135°, All angles (code 8) | ||||||
| Mounting pattern | Unfixed setting, movable male, movable female, fixed male, fixed clamp, top and bottom screw clipped screw, M16×1.5, M27×2, G1/2, G3/4 (according to requirement) | ||||||
| Technical parameters | Accuracy ± 1.5%, Contact capacity 220V/1A (no induction load 10VA) | ||||||
