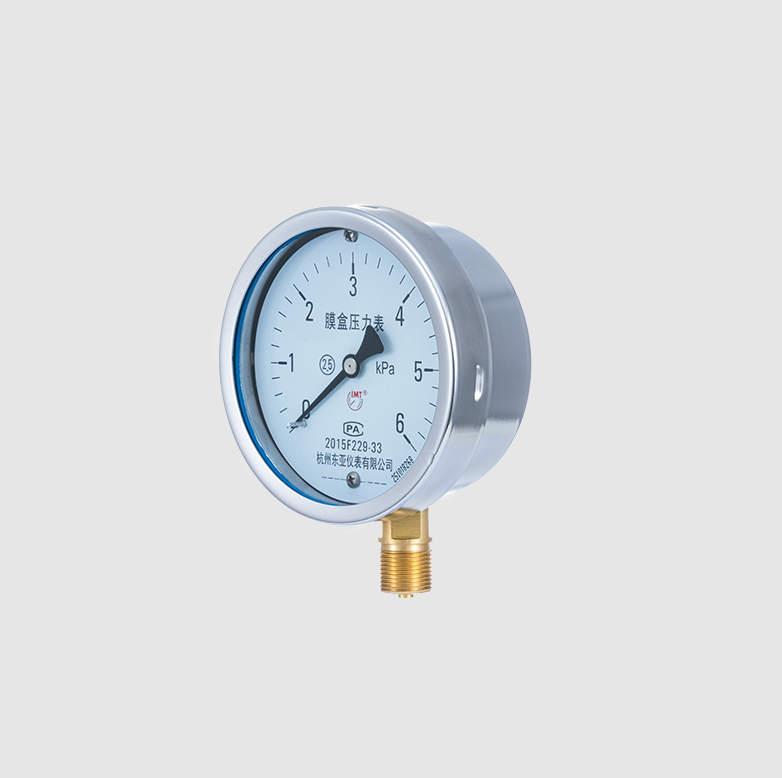

This marine water pressure gauge is made of 316L stainless steel anti-corrosion material and high damping oil filling design, which can accurately monitor the real-time pressure of the ship’s engine cooling system and prevent the engine from overheating. As the source manufacturing plant with more than 10 pressure instrument production lines, Hangzhou East Asia Instrument has strong independent research and development and mass production capabilities, providing you with cost-effective ex-factory price and fast delivery guarantee.
Marine water pressure gauge is mainly used in yacht outboard cooling monitoring, commercial ship water circulation system, ship water pump pressure monitoring and ship maintenance.
The case is made of 316L marine grade stainless steel, which has excellent oxidation resistance in the sea salt spray environment. Compared with ordinary stainless steel, it can effectively prevent rust spots and extend the service life at sea for 3 years.
high purity silicone oil is filled inside the meter, which can effectively absorb the mechanical vibration and pressure pulse when the ship is sailing, so that the pointer remains stable under the bumpy sea condition and eliminates the reading error.
the use of high-sealing structure design, completely prevent moisture from penetrating into the window, solve the common condensation fogging problem of marine instruments, to ensure that the reading is always clear in the morning or high humidity environment.
The core components have undergone 100000 fatigue tests and have extremely high linear response speed. They can capture small pressure changes in the cooling system and assist technicians in early warning before the engine overheats.
at the same time marked with pounds per square inch and bar two units, and the font is printed with anti-ultraviolet paint, in the long-term direct sunlight does not fade, does not crack, convenient maintenance standard reference in different regions of the world.
micron-level damping throttle is integrated at the joint, which can buffer the strong impact brought by the start of the water pump, protect the internal movement from structural damage, and reduce the maintenance cost of frequent instrument replacement.
| Technical indicators | Detailed Specifications | Remark |
| Measurement range | 0-15, 0-30, 0-60 PSI | Supports custom pressure ranges |
| Installation interface | 1/8 inch or 1/4 inch NPT | Compatible with mainstream outboard engine cooling connectors |
| Windows materials | Tempered explosion-proof glass | Durable and highly transparent |
| Precision error | ±1.6% of the full range | Error control exceeding industry standards |
| sealing material | Fluororubber | High temperature resistance and chemical corrosion resistance |
| Movement material | Hardened copper alloy or stainless steel | Reduce gear wear rate by up to 50% |
The marine hydrometer produced by IMT is deeply optimized for marine conditions. Compared with the common general-purpose pressure gauges on the market, we have strengthened the wear resistance of the internal movement and the sealing grade of the outer shell to ensure that the instrument can still maintain the measurement accuracy at the factory under long-term exposure to high salt and high humidity.

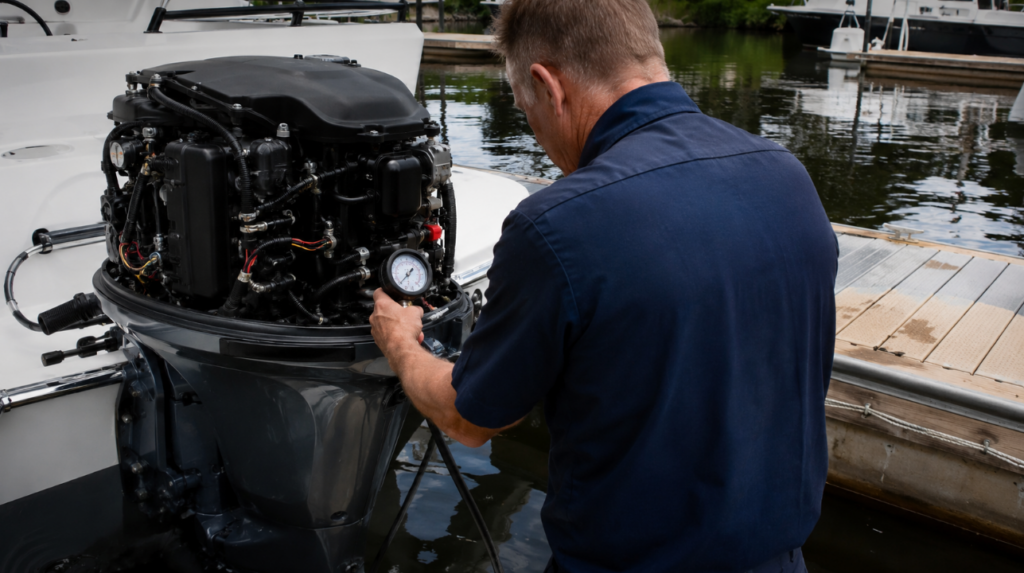

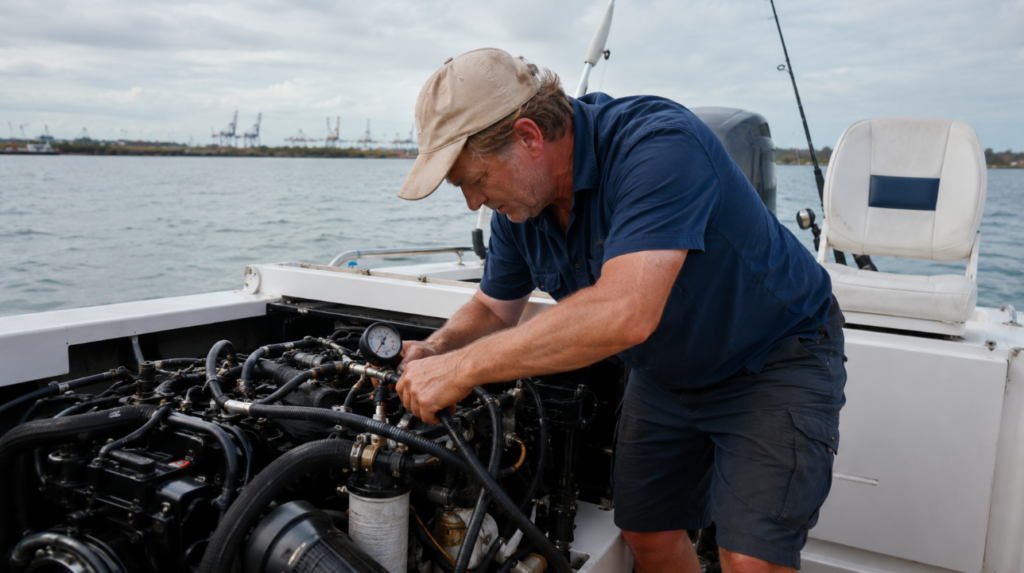

specializing in the regular maintenance of medium and large yachts and work boats, the need for high-quality, traceable instrument parts to ensure the professionalism and durability of maintenance services.
responsible for providing customers with engine cooling system upgrade solutions, requiring professional pressure measurement tools with complete specifications and compatible with major brands of engines.

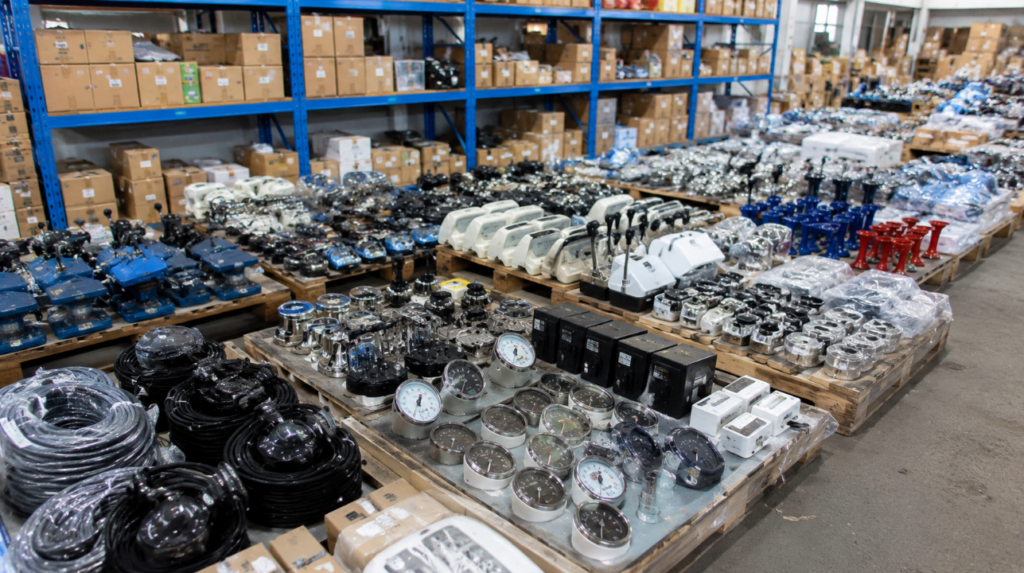

provide stable supply for offline repair shops, and value the factory’s supply capacity, product quality certification and long-term cooperation with wholesale price advantages.
Responsible for the day-to-day management of spare parts for commercial leased fleets or official ships, and the need to reduce the frequency of equipment replacement throughout the life cycle to save operating costs.
Please wrap the raw material tape at the thread before installation to ensure that the joint is completely sealed to prevent the cooling water from dripping and affecting the system pressure.
after placing the instrument into the panel opening, use the U-shaped bracket behind to symmetrically tighten the nut. It is strictly forbidden to use excessive torque to avoid deformation of the watch case.
After the installation is completed, please dial the rubber plug on the top to the open state to synchronize the pressure in the meter with the environment to obtain the highest measurement accuracy.
Observe the pointer when the engine is started. If the pointer rises steadily and stays within the range recommended by the manufacturer, the installation is successful and the cycle is normal.
certificate
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
This marine water pressure gauge is made of 316L stainless steel anti-corrosion material and high damping oil filling design, which can accurately monitor the real-time pressure of the ship’s engine cooling system and prevent the engine from overheating. As the source manufacturing plant with more than 10 pressure instrument production lines, Hangzhou East Asia Instrument has strong independent research and development and mass production capabilities, providing you with cost-effective ex-factory price and fast delivery guarantee.
0 to 60 lbf per square inch
Measuring range
50mm
Dial diameter
316L stainless steel
Interface material
The case is made of 316L marine grade stainless steel, which has excellent oxidation resistance in the sea salt spray environment. Compared with ordinary stainless steel, it can effectively prevent rust spots and extend the service life at sea for 3 years.
high purity silicone oil is filled inside the meter, which can effectively absorb the mechanical vibration and pressure pulse when the ship is sailing, so that the pointer remains stable under the bumpy sea condition and eliminates the reading error.
the use of high-sealing structure design, completely prevent moisture from penetrating into the window, solve the common condensation fogging problem of marine instruments, to ensure that the reading is always clear in the morning or high humidity environment.
The core components have undergone 100000 fatigue tests and have extremely high linear response speed. They can capture small pressure changes in the cooling system and assist technicians in early warning before the engine overheats.
at the same time marked with pounds per square inch and bar two units, and the font is printed with anti-ultraviolet paint, in the long-term direct sunlight does not fade, does not crack, convenient maintenance standard reference in different regions of the world.
micron-level damping throttle is integrated at the joint, which can buffer the strong impact brought by the start of the water pump, protect the internal movement from structural damage, and reduce the maintenance cost of frequent instrument replacement.
| Technical indicators | Detailed Specifications | Remark |
| Measurement range | 0-15, 0-30, 0-60 PSI | Supports custom pressure ranges |
| Installation interface | 1/8 inch or 1/4 inch NPT | Compatible with mainstream outboard engine cooling connectors |
| Windows materials | Tempered explosion-proof glass | Durable and highly transparent |
| Precision error | ±1.6% of the full range | Error control exceeding industry standards |
| sealing material | Fluororubber | High temperature resistance and chemical corrosion resistance |
| Movement material | Hardened copper alloy or stainless steel | Reduce gear wear rate by up to 50% |
specializing in the regular maintenance of medium and large yachts and work boats, the need for high-quality, traceable instrument parts to ensure the professionalism and durability of maintenance services.
responsible for providing customers with engine cooling system upgrade solutions, requiring professional pressure measurement tools with complete specifications and compatible with major brands of engines.
provide stable supply for offline repair shops, and value the factory’s supply capacity, product quality certification and long-term cooperation with wholesale price advantages.
Responsible for the day-to-day management of spare parts for commercial leased fleets or official ships, and the need to reduce the frequency of equipment replacement throughout the life cycle to save operating costs.
Please wrap the raw material tape at the thread before installation to ensure that the joint is completely sealed to prevent the cooling water from dripping and affecting the system pressure.
after placing the instrument into the panel opening, use the U-shaped bracket behind to symmetrically tighten the nut. It is strictly forbidden to use excessive torque to avoid deformation of the watch case.
After the installation is completed, please dial the rubber plug on the top to the open state to synchronize the pressure in the meter with the environment to obtain the highest measurement accuracy.
Observe the pointer when the engine is started. If the pointer rises steadily and stays within the range recommended by the manufacturer, the installation is successful and the cycle is normal.
