The IMT dual-needle pressure gauge is designed with a simultaneous dual-system measurement, which can simultaneously monitor two independent or related pressure points on one meter. As a source manufacturer with more than 10 professional production lines, Hangzhou East Asia Instrument (IMT) has been deeply engaged in the instrument industry for many years, eliminating all middlemen, providing you with highly competitive ex-factory prices, flexible customized services and faster order delivery response.
It is mainly used in locomotive braking system, hydraulic power unit, rail transit pneumatic equipment and double-line filter system.
Using an independent double-tube system, the red and black double needles can simultaneously display the pressure difference of different test points in the system, reducing installation space and reducing equipment costs.
the shell adopts airtight seal design and is filled with working fluid, which can effectively absorb severe vibration, eliminate pointer beating, and make the indicator more clear and stable.
high-quality stainless steel material, has excellent corrosion resistance, even in the harsh industrial environment can maintain long-term mechanical stability.
The internal movement is finely adjusted to ensure smooth gear transmission, and the measurement accuracy is as high as 1.6, which effectively reduces the mechanical fatigue error for long-term use.
with superior resistance to overpressure characteristics, high pulse or instantaneous pressure fluctuations in the occasion can still protect the internal measuring element is not damaged.
the structure design is novel and compact, supports radial or axial installation with edge, and the maintenance cost is extremely low. It is an ideal choice to replace imported instruments.
| Parameter name | Technical Specifications and Details |
| Model series | YNXC series / YX series |
| Measurement range | 0 to 0.1, 0.6, 1.6, 10, 60, 100 MPa |
| Accuracy level | Level 1.6 or Level 2.5 |
| Elastic element material | Phosphor bronze or stainless steel |
| Operating ambient temperature | -40 degrees Celsius to 70 degrees Celsius |
| Contact type | Upper and lower limits, upper limit, and lower limit are selectable. |
| Connection interface | M20×1.5, M14×1.5, G1/2, NPT1/2 |
| Filling liquid | Glycerin aqueous solution or silicone oil |
The IMT double-needle pressure gauge is specially optimized for high-frequency vibration environment, and adopts a unique “balanced pressure guide system” and “airtight oil-filled structure”. Compared with similar products in the market, the pointer offset error of IMT instrument is controlled within 0.05% when encountering 200Hz strong earthquake, which significantly improves the reading reliability.

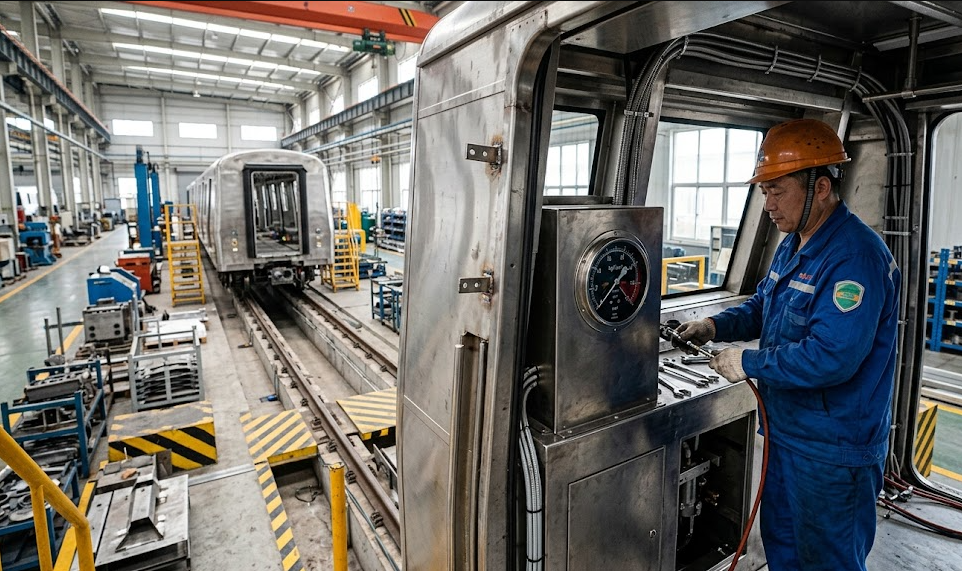

suitable for pressure monitoring of diesel locomotives and high-speed rail braking systems, helping engineers to achieve single-meter multi-point monitoring and optimize the layout of the control panel.

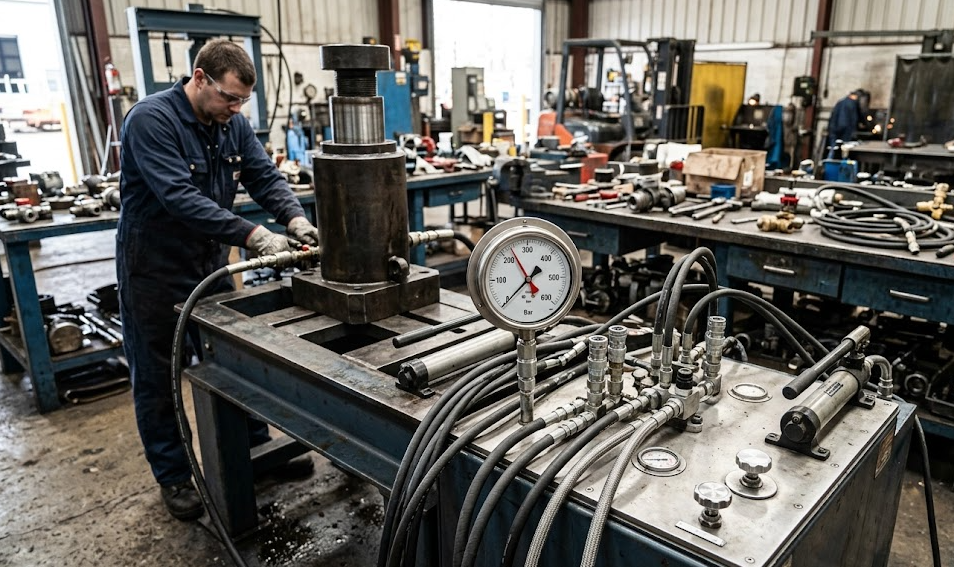

for large hydraulic stations, jack test bench to provide accurate two-point pressure comparison display, to ensure the logical safety of system operation.

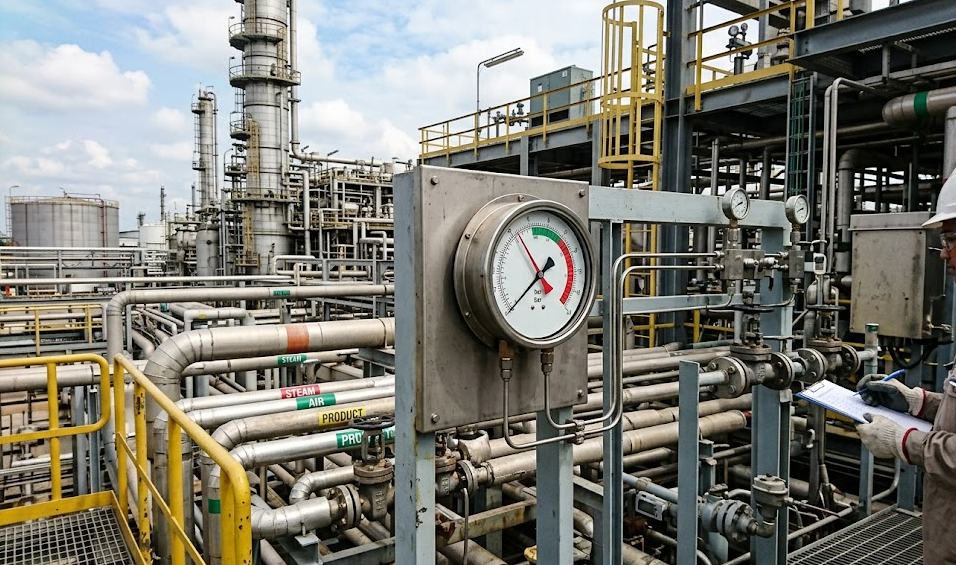

to meet the monitoring needs of chemical plants for corrosive media and high-voltage pulse environments, and to provide reliable seismic instruments with CNAS certification.
IMT instrument performance can completely replace imported products, helping agents to win orders in Europe and Southeast Asia through cost-effective solutions.

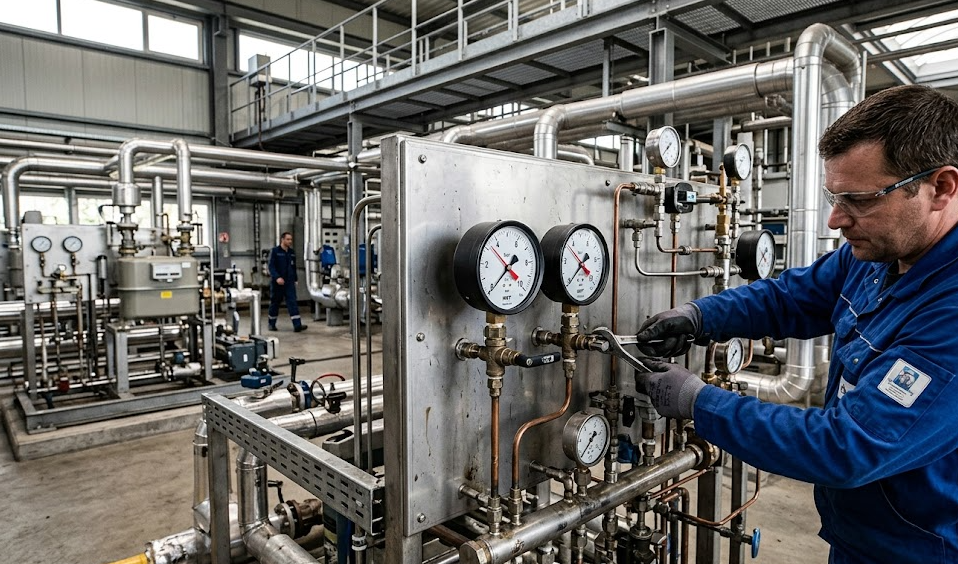

Ensure that the instrument is installed at a position perpendicular to the ground to eliminate the slight influence of gravity on the zero position.
Before use, confirm that the measuring medium is compatible with stainless steel or copper alloy materials to avoid corrosion and damage to elastic components.
before the formal operation, according to the requirements to open the sealing plug or pressure relief valve on the top of the case to balance the internal and external air pressure.
observe whether the double needle is zero under no pressure. It is recommended to check the accuracy every six months to maintain the best performance.
certificate
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
The IMT dual-needle pressure gauge is designed with a simultaneous dual-system measurement, which can simultaneously monitor two independent or related pressure points on one meter. As a source manufacturer with more than 10 professional production lines, Hangzhou East Asia Instrument (IMT) has been deeply engaged in the instrument industry for many years, eliminating all middlemen, providing you with highly competitive ex-factory prices, flexible customized services and faster order delivery response.
YNXC-100
Model
Class 1.6
Accuracy class
60 MPa
Measurement limit
Using an independent double-tube system, the red and black double needles can simultaneously display the pressure difference of different test points in the system, reducing installation space and reducing equipment costs.
the shell adopts airtight seal design and is filled with working fluid, which can effectively absorb severe vibration, eliminate pointer beating, and make the indicator more clear and stable.
high-quality stainless steel material, has excellent corrosion resistance, even in the harsh industrial environment can maintain long-term mechanical stability.
The internal movement is finely adjusted to ensure smooth gear transmission, and the measurement accuracy is as high as 1.6, which effectively reduces the mechanical fatigue error for long-term use.
with superior resistance to overpressure characteristics, high pulse or instantaneous pressure fluctuations in the occasion can still protect the internal measuring element is not damaged.
the structure design is novel and compact, supports radial or axial installation with edge, and the maintenance cost is extremely low. It is an ideal choice to replace imported instruments.
| Parameter name | Technical Specifications and Details |
| Model series | YNXC series / YX series |
| Measurement range | 0 to 0.1, 0.6, 1.6, 10, 60, 100 MPa |
| Accuracy level | Level 1.6 or Level 2.5 |
| Elastic element material | Phosphor bronze or stainless steel |
| Operating ambient temperature | -40 degrees Celsius to 70 degrees Celsius |
| Contact type | Upper and lower limits, upper limit, and lower limit are selectable. |
| Connection interface | M20×1.5, M14×1.5, G1/2, NPT1/2 |
| Filling liquid | Glycerin aqueous solution or silicone oil |
suitable for pressure monitoring of diesel locomotives and high-speed rail braking systems, helping engineers to achieve single-meter multi-point monitoring and optimize the layout of the control panel.
for large hydraulic stations, jack test bench to provide accurate two-point pressure comparison display, to ensure the logical safety of system operation.
to meet the monitoring needs of chemical plants for corrosive media and high-voltage pulse environments, and to provide reliable seismic instruments with CNAS certification.
IMT instrument performance can completely replace imported products, helping agents to win orders in Europe and Southeast Asia through cost-effective solutions.
Ensure that the instrument is installed at a position perpendicular to the ground to eliminate the slight influence of gravity on the zero position.
Before use, confirm that the measuring medium is compatible with stainless steel or copper alloy materials to avoid corrosion and damage to elastic components.
before the formal operation, according to the requirements to open the sealing plug or pressure relief valve on the top of the case to balance the internal and external air pressure.
observe whether the double needle is zero under no pressure. It is recommended to check the accuracy every six months to maintain the best performance.
