Explosion Proof Pressure Gauge
Model: YX-ZT
The YX-ZT explosion-proof pressure gauge combines a 100 mm axial front flange, selectable scale, stainless pressure system, and adjustable contacts in one configurable sourcing package. Its reinforced case, double-layer safety glass, rear pressure-relief cover, and compatible wetted parts support hazardous process monitoring. It suits installations that need local indication and limit switching together.
Dial and Mounting100 mm, axial front flange
Pressure SystemSUS304 or SUS316
Primary ApplicationHazardous process indication and alarm
Supply PositionStandard and configured orders
MOQ1 sample; 10 production pieces
CustomizationRange, thread, material, dial, and contacts
Standard configurations can ship in 1–2 working days; routine configured gauges require 3–5 working days after specification and payment approval.
Which YX-ZT Specification Produces a Comparable Quote?
A comparable YX-ZT quotation depends on one locked combination of scale, dial format, mounting direction, process connection, wetted material, and contact duty.
The 100 mm axial front-flange format suits panel mounting, while selectable pressure scales, M20×1.5 or custom threads, and upper/lower slow-action contacts define the orderable configuration.
Pressure scale and 100 mm dial format define the readable working range.
Axial front-flange mounting fixes the panel geometry and rear clearance.
M20×1.5 or an ordered alternative fixes the process interface.
SUS304 or SUS316 wetted parts are selected for the process medium.
Upper and lower slow-action contacts define alarm or interlock duty.
One locked configuration keeps price and lead-time comparisons valid.
Which Safety Elements Define a Hazardous-Area YX-ZT Installation?
Hazardous-area suitability comes from the complete enclosure and process configuration, not from the pressure range alone.
A stainless case, double-layer safety glass, rear pressure-relief cover, compatible wetted parts, vertical installation, and the project-specific hazardous-area approval must be evaluated as one safety package.
Enclosure and Relief Direction
The reinforced stainless case and double-layer safety glass protect the movement, while the rear relief cover requires clear space away from personnel and sealed panel obstructions.
Process Compatibility
The Bourdon tube, socket, thread, and seal must remain compatible with the measured gas or liquid; viscous, crystallizing, or strongly corrosive media require a different isolation arrangement.
Electrical and Area Approval
The contact circuit, cable entry, grounding, hazardous-area classification, and project approval must match the complete ordered gauge rather than a family name or pressure range alone.
When Does YX-ZT Limit Switching Fit the Control Task?
Mechanical indication, limit switching, digital display, and remote transmission solve different control tasks even when all instruments measure pressure.
YX-ZT combines local pointer indication with adjustable limit contacts; a local-only gauge omits switching, while a digital gauge or transmitter adds electronic display, recording, or continuous remote output.
Instrument Architecture
Local Indication
Electrical Output
Best-Fit Control Duty
Local-only mechanical gauge
Pointer and dial
None
Operator checks where no alarm or remote signal is required
YX-ZT electric-contact gauge
Pointer and dial
Adjustable upper and lower discrete contacts
Local indication with alarm, start/stop, or interlock duty
Digital gauge or pressure transmitter
Digital display, optional by model
Electronic switching, recording, or continuous analog/digital output
High-resolution display, data capture, or continuous control-system integration
Mechanical electric-contact pressure gauge for hazardous process areas
Dial and Mounting
100 mm dial; axial back connection with front flange
Dimensional Tolerance
Overall metalwork ±0.5 mm unless the approved order drawing states a tighter tolerance
Case and Pressure System
304 stainless steel case and movement; SUS304 or SUS316 Bourdon tube and process connection selected for the medium
Process Connection
M20×1.5 axial back connection; NPT, G, and other threads available by order
Applicable Standards
GB/T 1226-2001; hazardous-area electrical design basis per GB 3836.1 and GB 3836.2
Marking and Traceability
Model, range, accuracy class, batch or serial number, and inspection label on the instrument and carton
Packaging Unit
1 gauge per foam-protected inner box; grouped in an export carton by order quantity
Explosion-Proof Pressure Gauge Performance and Working Conditions
The operating window combines scale, temperature, accuracy, contact rating, medium compatibility, pressure loading, and installation limits.
-0.1–60 MPaSelectable compound and positive ranges
-10 to 50°CAmbient operating temperature
Class 1.6Indication accuracy
10 VAContact capacity at AC 380 V or DC 220 V
Working MediumClean, non-crystallizing gas or liquid compatible with selected SUS304/SUS316 wetted parts
Temperature LimitsAmbient -10 to 50°C; medium up to 100°C with the stated reference construction
Pressure LoadingSteady ≤75% FS; fluctuating ≤67% FS; short-time ≤1.3× FS for the 100 mm format
Installation LimitsVertical panel mounting; unobstructed rear relief path; isolated process pressure and electrical power during wiring or removal
Explosion-Proof Pressure Gauge MOQ, Pricing, and Delivery
Commercial terms align the sample route, production quantity, starting price, lead time, packing, payment, and shipping basis.
Minimum Order Quantity1 piece for evaluation; 10 pieces for production pricing
Sample PolicyPaid sample available; sample cost may be credited against a qualifying production order
Sample Lead Time1–2 working days for an available standard configuration; 3–5 working days for a configured sample
Bulk Lead Time3–5 working days after specification and payment approval for routine configured orders
Starting Price and AvailabilityIn stock — from USD 102.40 per piece, EXW; standard configurations available.
PackagingProtective film, shock-resistant foam, individual box, and marked export carton; custom carton labels available
Payment TermsT/T: 30% deposit and 70% balance before shipment for production orders; full payment for samples
Shipping SupportCourier and air freight for samples or urgent lots; sea freight or buyer-arranged pickup for larger orders
How Hangzhou Dongya Builds the Explosion-Proof Pressure Gauge
The manufacturer controls incoming parts, pressure-system assembly, calibration, full inspection, labeling, and export packing.
Hangzhou Dongya Instrument Co., Ltd.
Established in 2002, the company manufactures pressure gauges at its Fuyang District plant in Hangzhou. YX-ZT orders move through incoming inspection, Bourdon-tube welding, movement assembly, dial and pointer fitting, pressure adjustment, enclosure sealing, calibration, full inspection, labeling, and protective packing.
Pressure-gauge manufacturing and export are within the registered business scope.
Leakage pretests use 1.25× full scale before final assembly.
Final checks cover zero, rising and falling indication, hysteresis, light tapping, and sealing.
Routine configured orders support range, thread, material, dial, logo, and contact requirements.

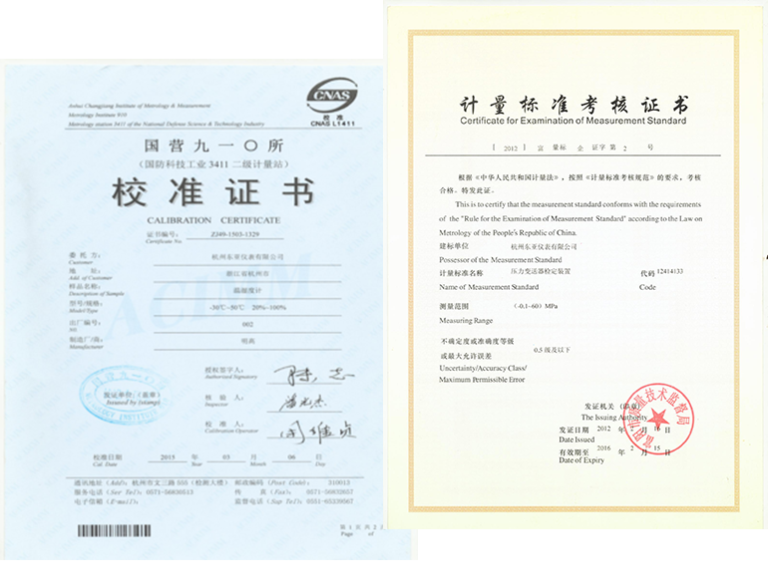

Certificates and Standards Supporting Explosion-Proof Pressure Gauge Orders
Management-system certification and product type approvals are presented with their exact validity and model scope.
GB/T 19001-2016 / ISO 9001:2015Certificate 41624QT7363R0; valid through November 25, 2027, subject to annual surveillance
Electric-Contact Gauge Type ApprovalPA 2009F464-33 covers YXC100 and YXC150 at accuracy class 1.6
Pressure Gauge Portfolio ApprovalsPA 2008F331-33, PA 2015F228-33, PA 2015F229-33, and PA 2015F257-33 retain the model and range scope stated on each certificate
Factory Inspection RecordsEach gauge receives zero, indication, hysteresis, tapping, and sealing checks before shipment
Address: Hangzhou Dongya Instrument New Plant Area, Zhougongwu, Yinhu Street, Fuyang District, Hangzhou City, Zhejiang Province (North side of National Highway 320)
Explosion-Proof Pressure Gauge and Shockproof Contact Model Options
The related model provides an alternative mounting and vibration-oriented configuration while retaining upper and lower contact switching.
