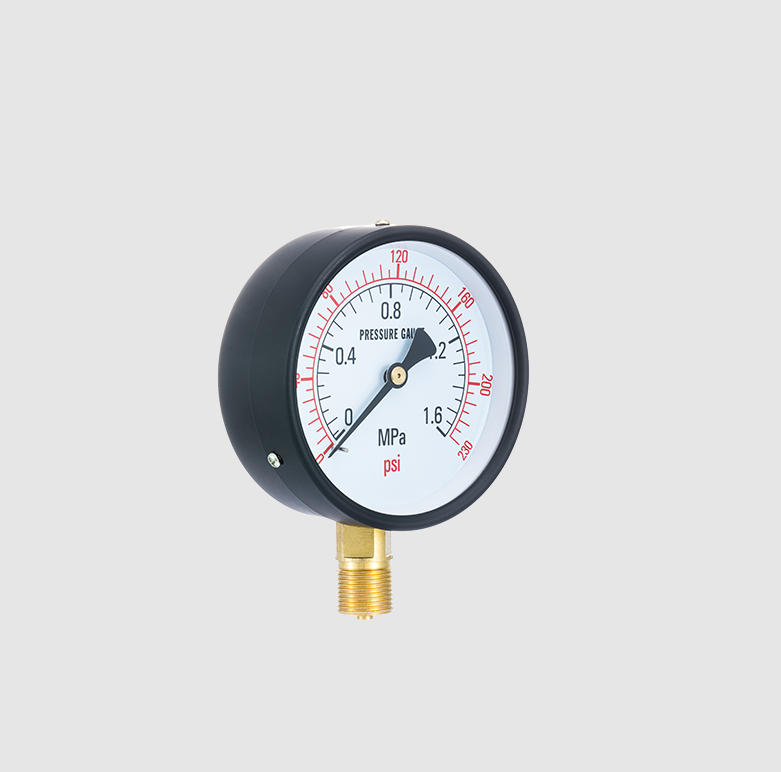

With its excellent vibration-resistant structure and high accuracy of ± 1.6%, the IMT truck barometer ensures real-time pressure monitoring of the vehicle under harsh road conditions, significantly reducing system maintenance costs. Hangzhou East Asia Instrument as the source of manufacturing plant, with 10 professional production lines and a number of export qualifications, refused to traders price difference, to provide you with more competitive ex-factory prices and flexible OEM customized services.
This product is widely used in commercial heavy trucks, construction machinery, hydraulic brake systems and mining transportation equipment.
the use of professional airtight process, can effectively prevent the internal filling of the working fluid leakage, to ensure that the instrument in the wet or dusty truck chassis environment long-term stable operation.
For severe vibration during truck driving, the instrument is filled with damping oil and equipped with damping throttle, with extremely small reading fluctuation, reducing the fatigue damage rate of the instrument by more than 60%.
The pressure guide system is made of high-quality stainless steel, which has excellent corrosion resistance and fatigue resistance. Under frequent pulse pressure impact, the service life is extended by 3 to 5 years compared with ordinary instruments.
white aluminum alloy dial and aluminum black pointer, clear and intuitive reading, with high-strength acrylic or tempered glass mirror, strong impact resistance, to avoid the risk of fragmentation during driving.
IMT has more than 10 pressure instrument production lines, which can customize specific measuring ranges and interfaces according to truck factory requirements, and direct supply from the source ensures extremely high cost performance for mass procurement.
the products have passed a number of enterprise qualification certification, and sold to Europe and Southeast Asian markets, to meet the strict access standards and quality requirements of international commercial vehicle accessories.
| Parameter Items | Technical Specifications and Details |
| Product Model | YN series vibration-resistant type / YNXC vibration-resistant electrical contact type |
| Accuracy level | Grade 1.6 (Φ100/150); Grade 2.5 (Φ60) |
| Upper limit of measurement | 0-0.1; 0.6; 1.6; 2.5; 4; 10; 25; 40; 60 MPa |
| Operating ambient temperature | -40℃ to 70℃ |
| Case Material | 304 stainless steel or electroplated steel casing |
| Bolton tube/connector material | Copper alloy or 316 stainless steel |
| Protection level | IP64/IP65 (splash-proof and airtight structure) |
| Filling liquid | Glycerin or silicone oil (optional) |
The durability of the IMT truck barometer far exceeds the industry standard. Through the self-developed airtight shell design, the defects of the traditional truck gauge that is prone to oil leakage and pointer vibration under severe vibration are fundamentally solved. Compared with the general-purpose instruments on the market, IMT adopts a higher specification 316L isolation diaphragm and laser resistance adjustment technology to ensure stable measurement accuracy under extreme temperature fluctuations.

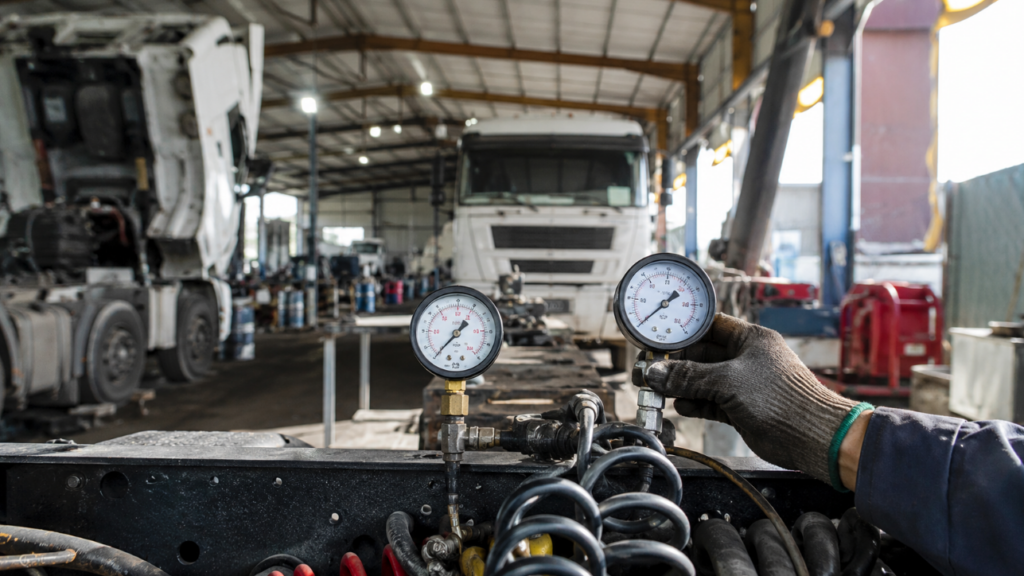

responsible for the daily maintenance and spare parts procurement of large quantities of trucks. The high endurance barometer provided by IMT can significantly reduce the maintenance frequency and operating cost of the fleet.

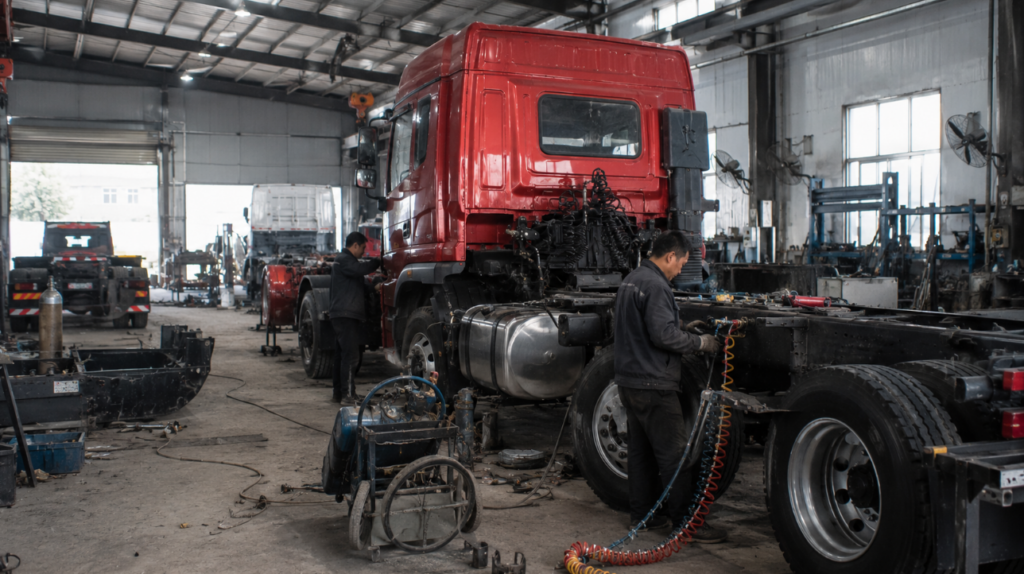

When refitting special vehicles and mining vehicles, customized pressure monitoring schemes conforming to industry standards are required. IMT’s more than 10 production lines can meet the customization requirements of various specifications.

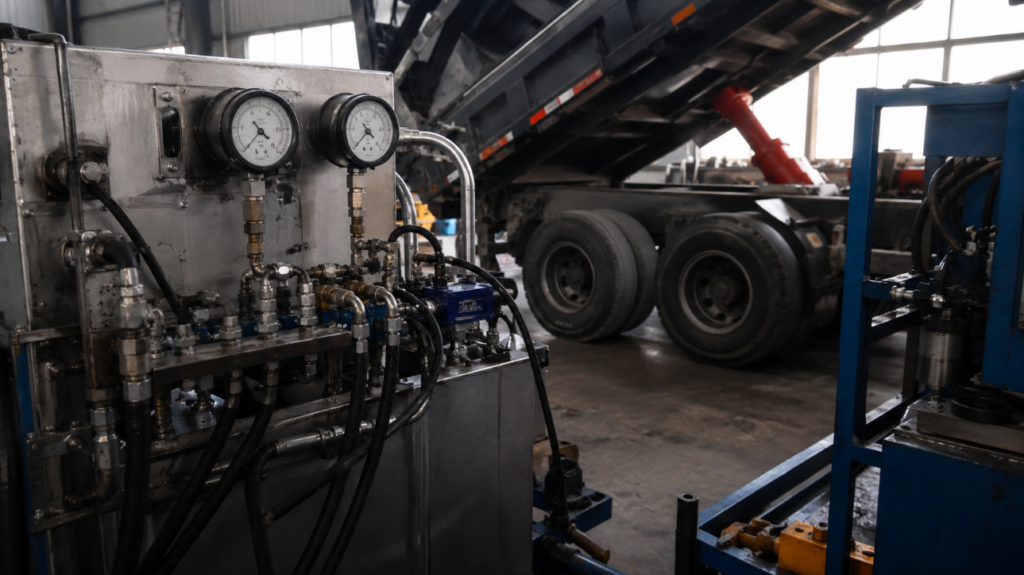

For the pressure control needs of industrial machinery such as petroleum and mining, the selection of IMT instruments can ensure that the equipment can still operate safely in extreme operating environments.
looking for a source factory with corporate certificates and global export experience. IMT’s mature Southeast Asian and European market supply experience is a reliable guarantee for its business expansion.
Before installation, please confirm whether the measuring range of the instrument meets the working pressure of the system, and check whether the thread of the joint matches.
The instrument should be installed vertically on a bracket with less vibration to ensure accurate readings and reduce internal mechanical wear.
suitable sealing gasket or raw material belt should be used when connecting to ensure that there is no gas leakage at the joint.
it is recommended to check the accuracy of the instrument every six months to ensure that it is in the best measurement state for a long time.
