IMT provides high-precision vibration-resistant spray system water pressure gauge, with excellent anti-pulse performance and stainless steel anti-corrosion housing to ensure long-term stable operation of the monitoring system. As a source manufacturing plant with more than 10 professional production lines, we eliminate intermediate links and directly provide you with highly competitive ex-factory prices and fast customized delivery services.
The water pressure gauge is mainly used in landscape irrigation system, commercial sprinkler system, agricultural irrigation pumping station and high-rise building water supply monitoring.

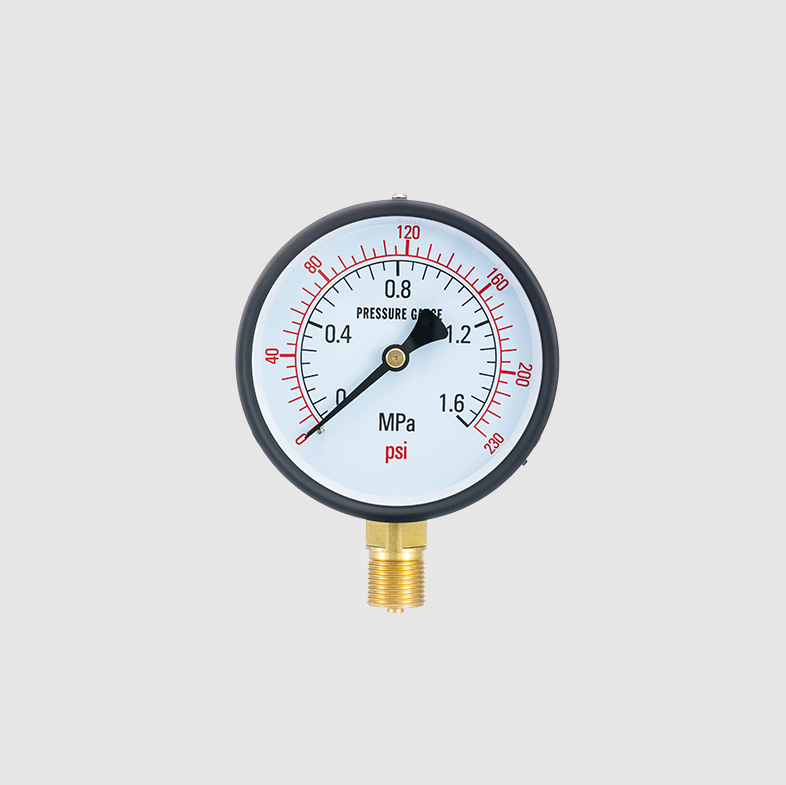

the dial adopts red and black double-color logo, supports double-unit display of megapascals and pounds per square inch, and can accurately read pressure fluctuations even in bad light, effectively avoiding misoperation.
the case is filled with high viscosity glycerin, can absorb the severe vibration of the system pipe network, eliminate the pointer beat, so that the pressure reading error is reduced to less than 1.6.
the use of thick stainless steel shell, with strong corrosion resistance and impact resistance, in the humid outdoor irrigation environment, the service life than ordinary carbon steel table to enhance more than 2 times.
brass current limiting screws are installed at the connection port to buffer the instantaneous pressure pulse when the pump is started, prevent damage to the gear mechanism, and ensure that the core components remain accurate after 100000 cycles.
the unique sealing process prevents moisture from penetrating into the dial, completely solves the problem of window fogging caused by outdoor temperature difference, and ensures that the internal transmission parts do not rust or jam.
the measuring element through the strict elastic compensation process, with excellent linearity, even in the long-term high pressure load can maintain zero accurate, without frequent calibration.
| Key Indicators | Technical Specifications | Industry Standard Reference |
| Measurement range | 0-1.0, 0-1.6, 0-2.5 MPa | Compliant with GB/T 1226 standard |
| Connecting thread | G1/4, NPT1/4 or custom | Compatible with international standard interfaces |
| Pressure sensing element | Tin-phosphor bronze Bourdon tube | Fatigue life ≥ 100,000 cycles |
| Protection level | IP65 | Completely dustproof and water-resistant |
| Windows materials | Tempered glass or polycarbonate | It is resistant to UV aging and not easily broken. |
| Transmission mechanism | High-precision copper alloy movement | Gear meshing clearance is less than 0.05mm |
Compared with similar products, the core advantage of the water pressure gauge produced by IMT is the strict material selection and precision assembly. Our movement adopts special hardened copper alloy and micron gear processing technology, which makes the reading stability of the instrument in long-term vibration environment about 40% higher than that of conventional products in the market.
For teams that need to provide customers with high-reliability engineering solutions, this product can significantly reduce the repair rate during the warranty period and improve the acceptance rate of the project.

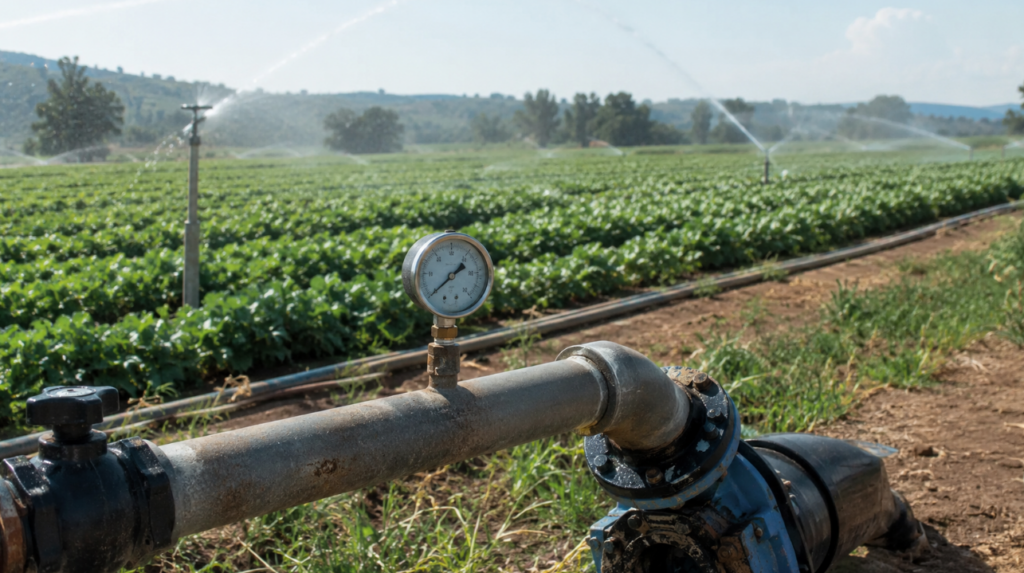

suitable for large-scale farmland or orchard irrigation system maintenance and construction, withstand outdoor wind and sun, reduce the cost of equipment replacement in remote areas.

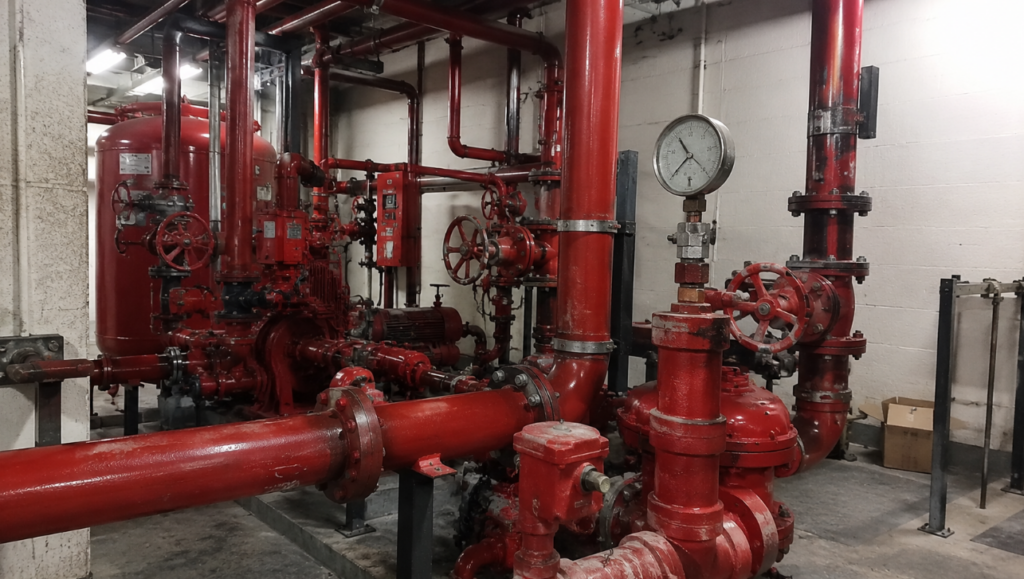

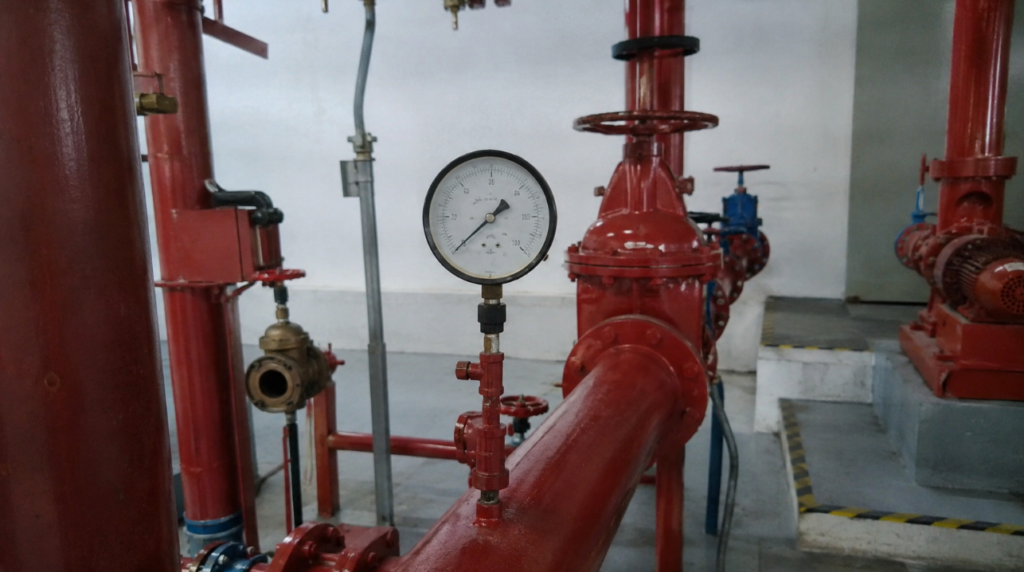

Responsible for the daily inspection of fire sprinkler systems in commercial buildings, requiring accurate and intuitive pressure monitoring equipment to ensure compliance with safety compliance checks.

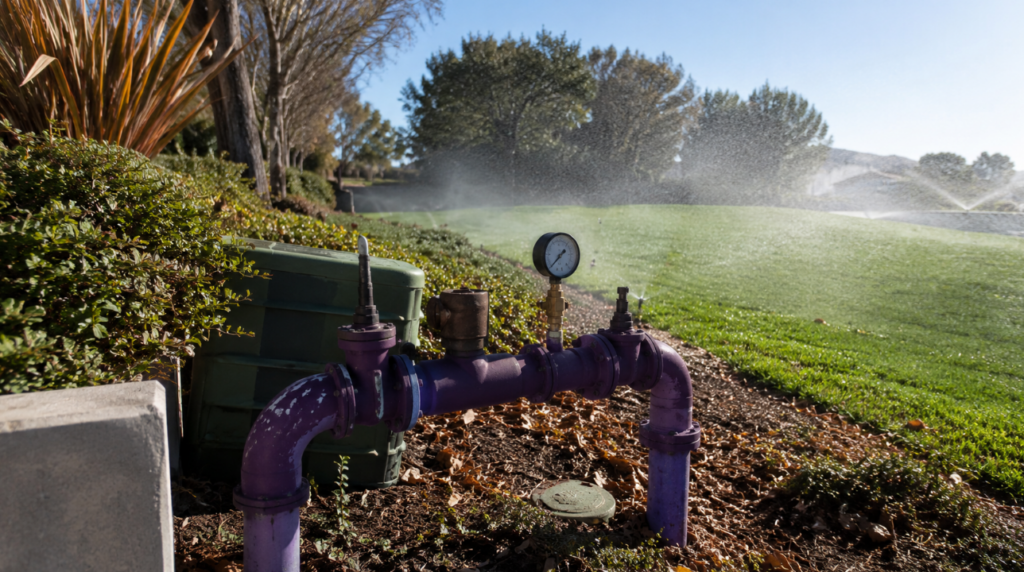

in the park, golf course and other green irrigation projects, the instrument is not only powerful and beautiful appearance, can enhance the overall professional image of equipment and facilities.
during installation, ensure that the instrument is perpendicular to the ground, and tighten the joint with a wrench. It is strictly forbidden to directly grasp the watch case for rotating installation.
In order to ensure the accuracy and life of the instrument, it is recommended that the actual working pressure is between 1/3 and 2/3 of the instrument range.
after the installation is completed, it is necessary to cut off the small protrusion of the sealing rubber plug on the top of the watch case to make the pressure in the table communicate with the atmosphere to ensure the accuracy of the measured value.
in winter cold areas, should ensure that the sheath or pipeline has appropriate anti-freezing measures to prevent the pipeline from freezing and cracking the measuring element of the pressure gauge.
certificate
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
IMT provides high-precision vibration-resistant spray system water pressure gauge, with excellent anti-pulse performance and stainless steel anti-corrosion housing to ensure long-term stable operation of the monitoring system. As a source manufacturing plant with more than 10 professional production lines, we eliminate intermediate links and directly provide you with highly competitive ex-factory prices and fast customized delivery services.
0 to 1.6 MPa
Measuring range
60mm
Dial diameter
M14 by 1.5
Interface size
the dial adopts red and black double-color logo, supports double-unit display of megapascals and pounds per square inch, and can accurately read pressure fluctuations even in bad light, effectively avoiding misoperation.
the case is filled with high viscosity glycerin, can absorb the severe vibration of the system pipe network, eliminate the pointer beat, so that the pressure reading error is reduced to less than 1.6.
the use of thick stainless steel shell, with strong corrosion resistance and impact resistance, in the humid outdoor irrigation environment, the service life than ordinary carbon steel table to enhance more than 2 times.
brass current limiting screws are installed at the connection port to buffer the instantaneous pressure pulse when the pump is started, prevent damage to the gear mechanism, and ensure that the core components remain accurate after 100000 cycles.
the unique sealing process prevents moisture from penetrating into the dial, completely solves the problem of window fogging caused by outdoor temperature difference, and ensures that the internal transmission parts do not rust or jam.
the measuring element through the strict elastic compensation process, with excellent linearity, even in the long-term high pressure load can maintain zero accurate, without frequent calibration.
| Key Indicators | Technical Specifications | Industry Standard Reference |
| Measurement range | 0-1.0, 0-1.6, 0-2.5 MPa | Compliant with GB/T 1226 standard |
| Connecting thread | G1/4, NPT1/4 or custom | Compatible with international standard interfaces |
| Pressure sensing element | Tin-phosphor bronze Bourdon tube | Fatigue life ≥ 100,000 cycles |
| Protection level | IP65 | Completely dustproof and water-resistant |
| Windows materials | Tempered glass or polycarbonate | It is resistant to UV aging and not easily broken. |
| Transmission mechanism | High-precision copper alloy movement | Gear meshing clearance is less than 0.05mm |
For teams that need to provide customers with high-reliability engineering solutions, this product can significantly reduce the repair rate during the warranty period and improve the acceptance rate of the project.
suitable for large-scale farmland or orchard irrigation system maintenance and construction, withstand outdoor wind and sun, reduce the cost of equipment replacement in remote areas.
Responsible for the daily inspection of fire sprinkler systems in commercial buildings, requiring accurate and intuitive pressure monitoring equipment to ensure compliance with safety compliance checks.
in the park, golf course and other green irrigation projects, the instrument is not only powerful and beautiful appearance, can enhance the overall professional image of equipment and facilities.
during installation, ensure that the instrument is perpendicular to the ground, and tighten the joint with a wrench. It is strictly forbidden to directly grasp the watch case for rotating installation.
In order to ensure the accuracy and life of the instrument, it is recommended that the actual working pressure is between 1/3 and 2/3 of the instrument range.
after the installation is completed, it is necessary to cut off the small protrusion of the sealing rubber plug on the top of the watch case to make the pressure in the table communicate with the atmosphere to ensure the accuracy of the measured value.
in winter cold areas, should ensure that the sheath or pipeline has appropriate anti-freezing measures to prevent the pipeline from freezing and cracking the measuring element of the pressure gauge.
