0 160 PSI Air Pressure Gauge​

Picking a 0-160 PSI barometer isn’t something you can just grab off the shelf and use. You have to work hard on four core parameters: the interface must be 1/4″ or 1/8″ NPT; the housing must be stainless steel and the movement inside must be brass; and the accuracy must be at least ±3-2-3%. A special reminder: if your installation is right next to the air compressor, or there are often high-frequency opening and closing pulse valves, you must choose an oil-filled meter, and don’t buy a dry meter. The oil filling can hold down the jitter of the watch needle, lubricate the internal mechanical parts, and prevent premature wear, otherwise you will not be able to read the number accurately at a pressure of 160 PSI.

Interface Standard

Integrating a table with 0-160 PSI into an existing system will cause all the trouble if you choose the wrong interface size. In the daily case of DY Pressure Gauge, I found that most industrial-grade air presses use 1/4″ NPT because this specification is strong enough and has high mechanical strength. However, if you’re dealing with a compact surge valve or a small pneumatic valve island, the 1/8″ NPT is the go-to. The thread specifications must be tightly fitted. Once there is a leak, your air compressor will be idling desperately to make up the pressure, wasting electricity and machine life.

Installation Location

How the barometer grows on the tube directly determines whether your reading is smooth and whether it is safe during maintenance.

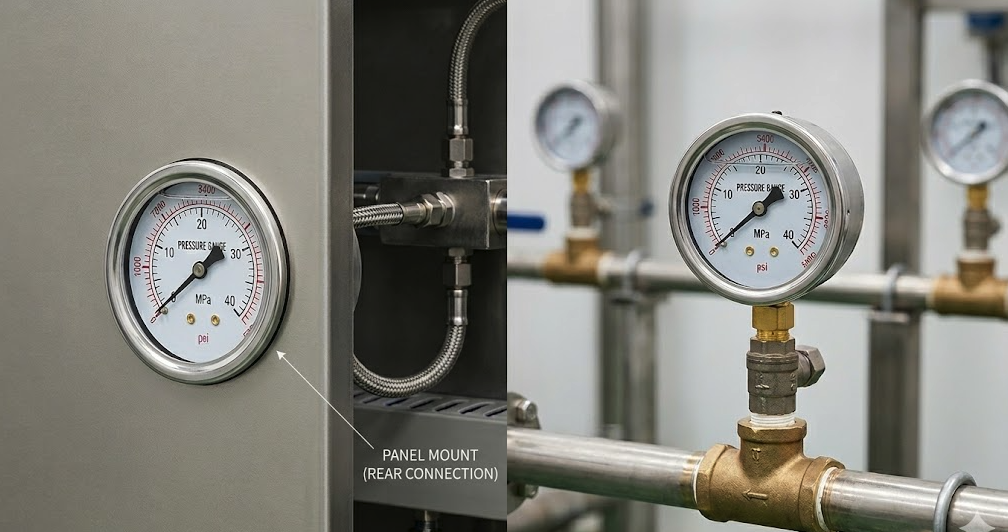

Lower Mount: This means the connector is under the dial. If your line is running vertically, this vertical installation method is most suitable. Most independent pressure regulating valves do this.

Back Mount: The interface is directly behind the dial. This is mainly prepared for control cabinets or instrument panels. After installation, the watch head is flat and neatly embedded in the panel, and the pipes are hidden inside. It is both beautiful and protects the threads from being knocked.

Material-Determined Durability

The environment on industrial sites is often quite harsh. A decent 160 PSI watch must be fitted with a 304 stainless steel housing, otherwise the bumps or dampness in the workshop will render it useless in a few days. It is a hard truth to use brass for the inner parts ——that is, the spring tube and the transmission core——, especially when running air or non-corrosive gases. Brass conducts heat well and is wear-resistant. As long as the material is selected correctly, even if it runs for tens of thousands of cycles, the gears inside will still react as fast as new.

Find Out The Accuracy Level

For us MRO people, “probably” is not an option. Grade B accuracy means:

• In the middle half of the scale, the error must be controlled within ±2%.
• The error is controlled at ±3% for the first and last quarter scales.

If you think about it, most of our pneumatic tools work at pressures between 90 and 110 PSI, which falls right in the most accurate range” of the dial.

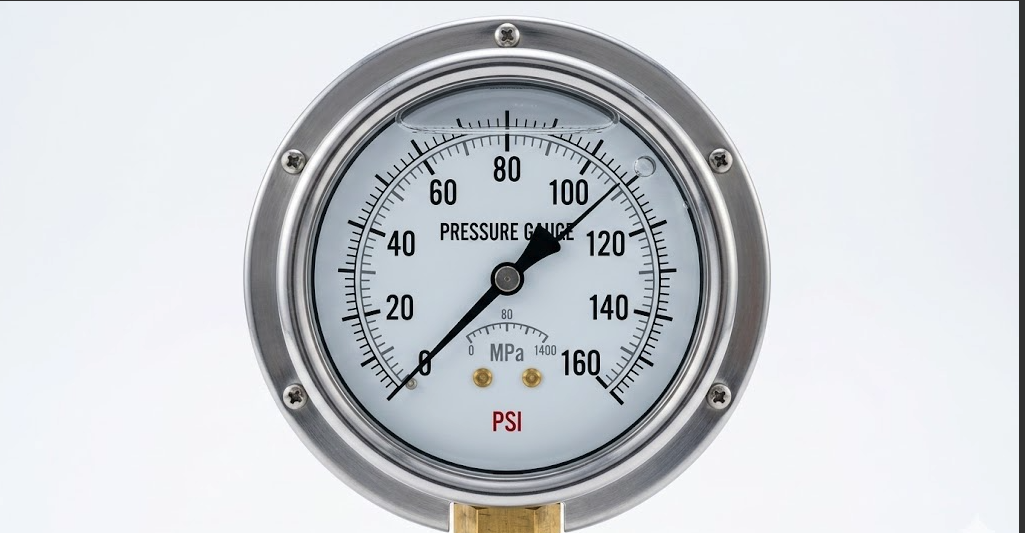

Why Must The High Vibration Area Be Filled With Glycerin

I would definitely recommend oil filling whenever an air compressor or pulse valve is involved.

Those sticky glycerins on the dial have three key roles:

1. Anti-shock: It completely eliminates needle tremors, and you can see the reading at a glance even if the machine shakes.
2. Lubrication: Glycerin soaked the brass parts inside, which reduced friction. I roughly estimated that the life of an oil-filled meter is at least 5 times that of a dry meter.
3. Protection: It acts like a barrier, blocking internal condensation and corrosive moisture in the air, ensuring that the dial is always fresh and never fogs up.

Advice For Professional Buyers

When your top priority is system safety and no downtime, choose a 0-160 PSI barometer and never just look at the price. The hard truth is whether the interface is stable, whether the stainless steel shell is hard enough, and whether the glycerin shock absorption is not in place. At DY Pressure Gauge, we focus on production according to these practical standards.
