0 60 psi liquid filled pressure gauge: What to Check

When you see the phrase “0 60 psi liquid filled pressure gauge,” separate it into two specifications. The 0–60 psi range describes the scale span, while liquid filling describes the damping structure inside the case. One answers “how far the gauge reads”; the other describes how pointer movement is controlled. Neither replaces the pressure reference, medium, temperature, or connection requirements.

Separate the Range from the Pressure Reference

A 0–60 psi range means that the lower limit is 0 psi and the upper limit is 60 psi. It does not mean that the allowable error is 60 psi, and it does not mean that the equipment must normally operate at 60 psi. For common unit comparison, 60 psi is approximately 413.685 kPa, 4.13685 bar, or 0.41369 MPa. The conversion is useful for comparing units; the formal order should still follow the standard range, unit, and accuracy expression in the data sheet.

A pressure reading also depends on its reference. Gauge pressure uses local atmospheric pressure as the reference, absolute pressure uses absolute vacuum, and differential pressure compares two measuring points. The term “pressure gauge” alone does not identify the required reference. When the task involves two pressure points, the differential relationship must be stated clearly.

The Liquid Is in the Case, Not the Process Path

A liquid-filled pressure gauge has damping liquid inside the case and around the movement. The liquid surrounds the links, gears, and shaft components, helping reduce pointer movement caused by mechanical vibration, pressure pulsation, and rapid fluctuations. It is normally not inside the Bourdon tube or another pressure-sensing element, and it is not the process medium being measured.

Glycerin, water-glycerin mixtures, and silicone oil can all be used as case-filling liquids, but the filling liquid should not be changed freely between models. Case filling can also isolate part of the internal moisture and reduce the risk of condensation, corrosion, frost, or fogging at the window. The actual effect still depends on the case sealing and environmental conditions. If the instrument uses a diaphragm seal system, the filling liquid inside the sealed pressure-transfer chamber is a different structural element and should not be confused with the case damping liquid.

Operating Conditions Determine the Value of Liquid Filling

Liquid filling does not change the pressure reference, dial range, or process connection. When selecting a 0–60 psi range, normal pressure, short-term peaks, cycle frequency, overpressure capacity, proof pressure, and burst pressure should be understood as separate items. The range describes the normal display span; the structural pressure limits cannot replace one another.

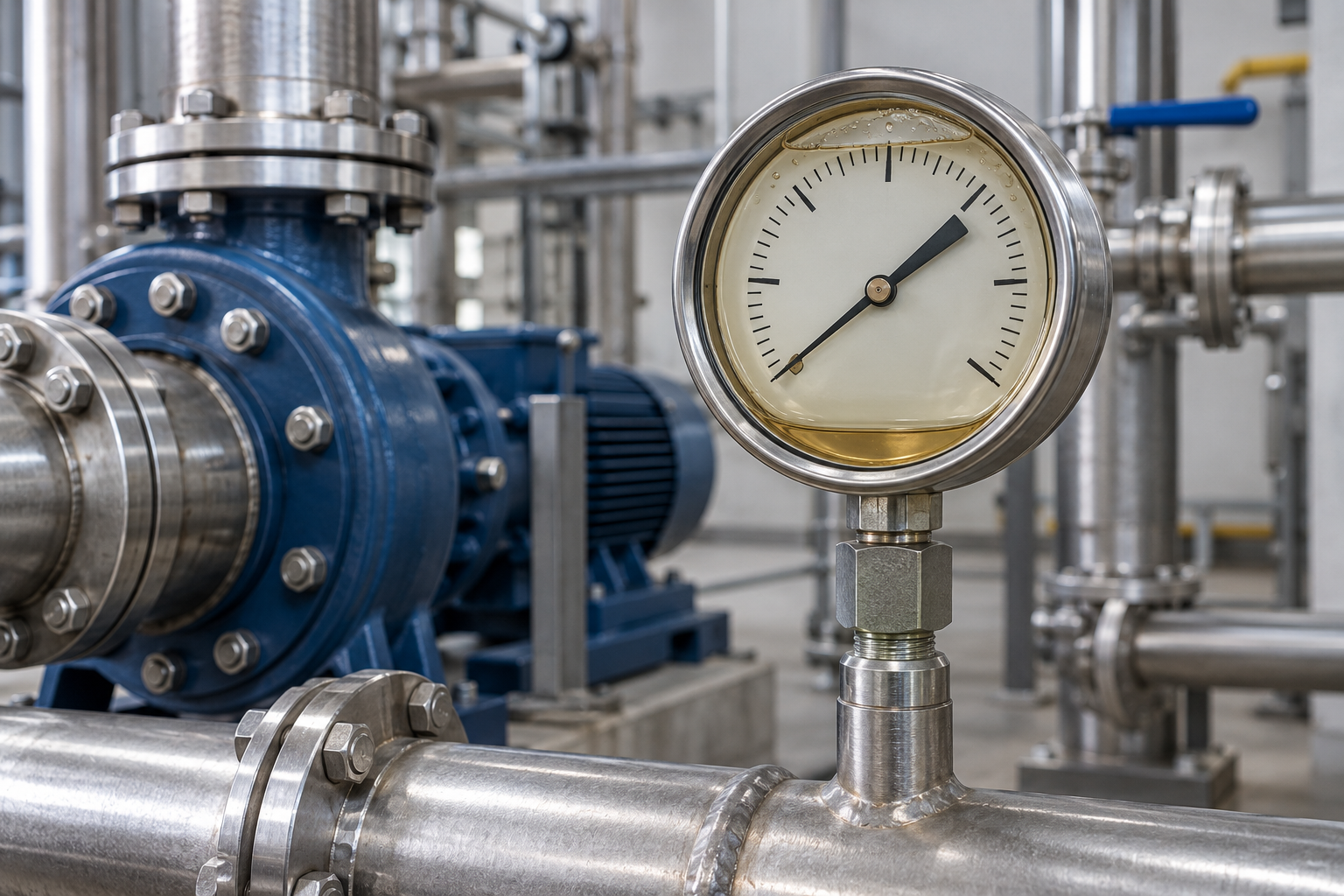

Pumps, compressors, hydraulic equipment, and vibrating machinery can expose the pointer to mechanical vibration or pressure pulsation, where liquid filling can help reduce reading movement. A dry gauge or another damping arrangement may be worth comparing when the installation is static, has little vibration, places a high value on quick response, or has filling-liquid compatibility limits. A filled case should not be treated as a solution for every unstable pressure condition.

Check the Medium and Temperature with the Wetted Materials

After the range and filling structure are defined, the measured medium still has to be considered. Cleanliness, viscosity, and a tendency to clog or crystallize can affect the suitability of the pressure-sensing path. The process temperature and ambient temperature also need to be checked separately. Liquid filling describes the case structure; it does not make the wetted materials compatible with every process medium.

Two gauges with the same 0–60 psi range may face different material and temperature requirements because their media and environments differ. The specific filling liquid, wetted materials, and temperature limits should be confirmed against the relevant model data sheet instead of being inferred from the words “liquid filled.”

Connection and Mounting Are Separate Specifications

The 0–60 psi range and the process connection are independent specification fields. Complete connection information should include the thread system, nominal size, male or female form, sealing method, and connection position. NPT, BSP/G, and metric threads can differ in profile, pitch, taper, and parallel form, so one size field alone is not enough to establish a match.

Bottom, back, center-back, and lower-back connections affect pipe position, panel cutout, and the space behind the gauge. Tighten the instrument through the wrench flats on the connection. Do not rotate the case to align the pipe, and do not allow the instrument to carry pipe weight or additional mechanical stress.

Turn the Requirement into a Verifiable Specification

A complete description should state the pressure reference, range and unit, accuracy expression, normal pressure, peaks and overpressure conditions, medium, wetted materials, process and ambient temperature, filling-liquid type, process connection, sealing method, mounting position, and vibration or pulsation conditions. With these fields matched to a specific model and data sheet, 0–60 psi becomes a verifiable range requirement and liquid filled becomes a verifiable damping configuration. The product name alone cannot replace the complete specification.
