Calculate Gauge Pressure in a Pipe and Manometer Fast

It’s really not a big deal to calculate the pressure. Whether you apply the old U-tube pressure difference formula (p = ρ g h) or simply and roughly subtract atmospheric pressure from the absolute pressure of the closed pipe (gauge pressure = absolute pressure-atmospheric pressure), it can be done in minutes. For example, at standard room temperature, a differential pressure of 10 inches of water column in a standard U-tube corresponds to exactly 0.36 psi(2490 Pa). But don’t think it doesn’t matter if you’re a few Pascals short. When measuring the cold water pipe network, if you 1 panic and make a mistake, the workshop will suffer immediately: the sealing ring burst, the pump cavitation, and even the whole pump will be scrapped directly. Today, let’s pick up the 1. How did the old birds skip the complicated formulas in the textbook and can find out the accurate readings in 30 seconds.

The “DHC” extreme speed accounting method of the old fritters in the field.

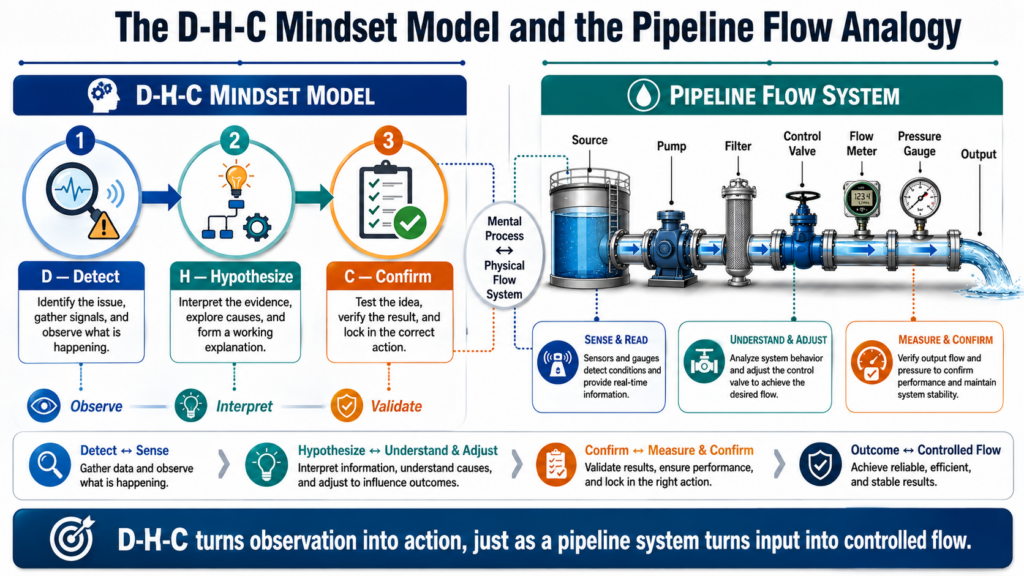

Our brothers working in the field, who has the spare time to take out a white board to solve the fluid mechanics equation? If you want to calculate the gauge pressure quickly and accurately on the pipeline or differential pressure meter, you only need to remember this “DHC” (density-height-correction) model in your mind:

Density (Density): First, the specific gravity (SG) of the fluid. The density of water is 1.0, mercury is 13.6.

Height: Hold the true “vertical” height difference (Δh) between two liquid columns.

Correction (Correction): Fine-tune the meniscus according to the ambient temperature and liquid surface (remember an iron rule: if it is water, read the point at the bottom of the concave surface; If it is mercury, read the top with the most convex surface).

How to directly calculate the gauge pressure in the flowing pipeline?

To measure the gauge pressure of a flowing fluid, you have to first distinguish what is “static pressure” and what is “dynamic pressure (velocity head)” that changes when touched 1 “. Before the formula is set, don’t forget that the liquid inside is alive and moving all the time.

The Interplay Of Motion And Stillness

Directly in the flow of the pipe wall hole measured out, in fact, is purely static pressure. The total pressure in the tube is ultimately attributed to the Bernoulli principle tube. In order to accurately measure the gauge pressure of the liquid on the pipe wall, you must ensure that the pressure inlet (that is, the place where the pressure gauge is connected) is absolutely perpendicular to the fluid direction. Even if the angle is slightly off, it will produce a “pitot tube” effect, mixing the dynamic pressure into it, and the measured value is absolutely inflated.

Save The Trouble Of Settling Accounts By The Installation Location.

Instead of racking your brains to compensate for the error caused by mechanical vibration when counting, it is better to install a buffer tube (condensation ring) or damper at the beginning to filter out the vibration directly. Most of the time, workshop operators complain that “the pressure gauge pointer jumps indiscriminately”, which is actually the violent shock wave caused by the water hammer phenomenon hitting the Bourdon tube violently. Give a practical suggestion: when installing the pressure gauge, it must be at least 5 times the pipe diameter away from the elbow or valve, so that you can get a reliable reference value when calculating manually.

How to calculate the gauge pressure of U-tube differential pressure gauge?

The principle of calculating the pressure difference is simply not too simple: just multiply the number of 3-fluid density, gravity constant, and vertical height difference (P = ρ · g · h).

The Specific Algorithm For A U-Tube

First find the lowest point of the meniscus. If your pipe is filled with water, measure the height difference and convert the unit to meters (or inches). Multiply this height by the density of the water (1000kg/m³) and multiply it by the acceleration of gravity (9.81 m/s²). For example, if the height difference is 0.5 meters, the gauge pressure is: 1000 × 9.81 × 0.5=4905 Pa kasca (almost 4.9 kPa).

Capillarity And The Pits In The Meniscus

If you lose sight of the scale, all you have to do is waste paper. The thin tube will produce capillary action, and the water will hang on the glass to form a concave surface-at this time you must start from the absolute lowest point of the U-shaped pit. But what about mercury instead? Mercury repels the glass and will arch a convex surface-then you have to read the apex of that arc. If this detail is ignored, the error can soar to 2%. In a high-pressure system such as heating, ventilation and air conditioning (HVAC), such a slight deviation will be magnified infinitely, and finally a big mess will be made.

Veteran Advice: Temperatures Can Deceive

Once the ambient temperature rises above 25 ℃, the density of the liquid in the differential pressure gauge will drop, which directly evacuate the foundation of your gauge pressure calculation. Imagine an HVAC roof unit with a high temperature of 40°C outdoors in summer-it’s so hot that the water in the pressure gauge is hot. At 40 ℃, the density of water has dropped to 992 kg/m . At this time, if you still put the standard value of 1000 kg/m into the formula, the calculated pressure is definitely a lot higher than the actual pressure of the system.

Field Veteran Experience: Temperature Swings Are An Invisible Killer

As long as the ambient temperature deviates from the normal temperature, the density of the liquid in the pressure gauge will change physically, which directly leads to the deviation when you calculate the basic gauge pressure. For example, in the high-temperature boiler room of a chemical plant, the room temperature around the measuring point will soar to 50 ℃. In this extreme environment, the density of the water in the pressure gauge has actually fallen to almost 988 kg/m . At this time, if you still stick to the standard value of 1000 kg/m , the pressure data obtained is absolutely wrong and cannot reflect the real operating conditions of the system.

Manometer Quick-Reference: Density Variations & Correction Multipliers

Temp (°C)	Water Density ( kg/m ³)	Water Multiplier	Mercury Density ( kg/m ³)	Mercury Multiplier
10°C	999.7	0.9997	13,570	0.9978
20°C	998.2	0.9982	13,546	0.9960
30°C	995.7	0.9957	13,521	0.9942
40°C	992.0*	0.9920	13,497	0.9924

Real Case Analysis: Life and Death Speed in Large Cooling Water Pipe Network

(Review Of A Real Event)

In July 2024, the 2000-ton cooling water system of a semiconductor wafer factory in Guangdong is undergoing commissioning and acceptance. At that time, the DCS system in the central control room suddenly gave a crazy alarm, and the operation interface showed an abnormal pressure drop of 25 psi in the primary water supply main pipe. The intelligent digital transmitter in the control room continuously sends signals to the outside, indicating that the main water pump is seriously faulty, or that the pipe network is ruptured and leaking in a large area. At that time, the factory director was so anxious that his eyes were red that he almost had to make an emergency shutdown.

At this juncture, the chief engineer of our maintenance team noticed something was wrong. Without further ado, he picked up an “antique” U-shaped mercury differential gauge and went straight to the scene. He 1 the end of the pipe to the physical test valve before and after the water pump, and planned to check it 1 by hand.

The chief engineer calculated the account (P = 13600 × 9.8 × 0.15m) at the scene, and calculated that the actual pressure drop was actually about 20 kPa (2.9 psi after conversion). In fact, the water pump and pipeline run as stable as an old dog, nothing! Finally, the truth was found out: the construction welding slag and rust rushed out of the pipeline completely blocked the pressure-taking and pressure-inducing pipe on the high-pressure side of the digital transmitter, resulting in serious distortion of the meter reading. This matter once again taught everyone a 1 lesson: in the extremely complex environment of the industrial site, the most primitive physical pressure gauge is the “sea-fixing needle” that can really give you reassurance “.

Peer Answer (FAQ)

How Do You Convert Gauge Pressure Into Absolute Pressure In The Pipeline?

Just add your local atmospheric pressure to the gauge pressure reading. If the gauge on the pipe is 30 psi and the local atmospheric pressure is 14.7 psi, the absolute pressure is 44.7 psi.

Can High Pressure Gas Be Measured By Water Column Differential Pressure?

Never. The high-pressure gas can instantly spray the water in the U-shaped tube so that it can’t even shadow it. With a high-pressure system, you have to get a denser fluid-such as mercury or high-density oil-to keep the level difference within easy visibility.

Without A Calculator, How Do You Look At The Pressure Gauge And Calculate The Pressure?

The weight multiplier is learned by rote. When using a small water column differential gauge, remember this dead principle: 1 inch of water column (in.wc.) is exactly 0.036 psi. Multiplex your measured inches directly in your head by a 0.036 and call it a day.

There Is Clearly Liquid Flowing In The Pipe, Why Is The Pressure Gauge Reading Zero?

In the 1 case, the pressure in the pipe just offsets the atmospheric pressure outside. Another possibility 1 that the sensor connector is completely blocked by residue. A reading of zero means that even if the water is flowing, there is no back pressure (resistance) that can generate gauge pressure.

What Is The Effect Of Fluid Viscosity On The Calculation Of Gauge Pressure?

The slimy fluid has a lot of friction with the pipe wall-which causes head loss-and all the way downstream, the pressure decays all the way. Because of this viscous friction, the gauge pressure you measure near the pump must be higher, and the more you go to the end of the pipeline, the lower the pressure.

Is It A Digital Pressure Sensor Or A Liquid Differential Pressure Gauge?

Each has its own use. If your system has to be monitored 24 hours a day, or if you have to connect to a SCADA system, choose a digital sensor. However, if your aim is to absolutely calibrate and troubleshoot the kind of neck-stuck fault, or simply to verify whether the digital meter is accurate or not, then you have to ask the liquid differential pressure meter out-because gravity and fluid density will never lie.
