Diaphragm Seal Pressure Transmitter

In those challenging industrial sites where you want to get accurate and reliable pressure readings, a diaphragm-sealed pressure transmitter is definitely that crucial “physical barrier”. It completely separates sensitive measuring elements from corrosive media, high-temperature fluids or substances that tend to adhere to crystallization. A “perfect” solution must strike a balance in four dimensions: First, material compatibility. The flush diaphragm for liquid connection must be selected based on its chemical properties, such as Hastelloy C-276, Tantalum or ordinary 316L stainless steel; secondly, the filling fluid dynamics, which uses silicone oil for conventional working conditions, but requires replacing the fluorine oil to control the temperature drift when encountering special working conditions such as oxygen; and finally, the system configuration, which is a direct connection with fast response, or a remote transmission seal for heat dissipation by a ribbon-selective capillary; and finally, temperature compensation, which is crucial to eliminate zero-point drift caused by ambient temperature differences. As long as these details are integrated with the 4-20mA HART protocol and the process connection of full vacuum filling and tight fitting is guaranteed, the long-term accuracy and low maintenance rate of the equipment can be guaranteed, whether in the pharmaceutical hygiene grade or heavy industry.

Material Compatibility

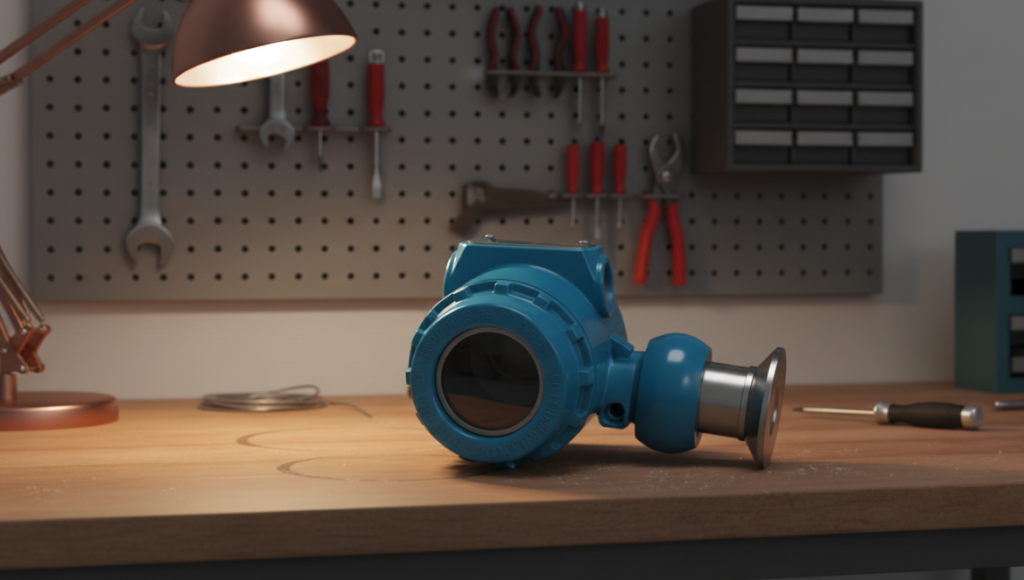

How long a diaphragm seal pressure transmitter can last depends largely on whether that diaphragm is enough “hard”. This flush diaphragm is the first line of defense for the transmitter. When dealing with ordinary industrial water or weakly corrosive fluids, 316L stainless steel is the standard answer. In that harsh environment filled with chloride or strong acid, pitting corrosion or stress corrosion will occur in 316L minutes. Engineers must upgrade to Hastelloy C-276 or tantalum. In addition to corrosion resistance, the mechanical design of the diaphragm is also very particular. For example, flush mounting is very useful when handling viscous or slurry media. It can effectively prevent the accumulation of materials in the “dead zone” and ensure that the pressure signal is always sensitive.

Filling Fluid Dynamics And Thermal Expansion

The filling fluid inside the sealing system actually acts as a hydraulic connection, transmitting pressure from the diaphragm to the internal sensor. Safety comes first in some special applications, such as oxygen or chlorine gas conditions, and the use of fluorine oil must be mandatory. Another thing that troubles engineers is the coefficient of thermal expansion of fluids. As soon as the process temperature rises, the filling liquid expands, which exerts a “false pressure” on the sensor. Choosing a liquid with a low coefficient of expansion and ensuring that the system is filled under an extremely high vacuum without a single bubble is a hard indicator of maintaining high accuracy.

System Configuration

How to position the physical location of the transmitter depends entirely on the heat distribution and space constraints on site. If the process temperature is still within the tolerance range of the transmitter electronics, a direct-connect installation is better, which is simple in structure and extremely responsive. On the contrary, if the medium temperature is frighteningly hot, or the transmitter needs to be moved to a more convenient place for maintenance, a remote seal with a capillary tube becomes a must. The capillary tube acts like a thermal buffer zone, effectively dissipating heat and protecting delicate electronic components. Engineers need to carefully calculate the capillary length. Pulling it too long will not only slow down the response, but also increase the chance of being disturbed by the ambient temperature.

Temperature Compensation And System Integration

When the ambient temperature fluctuates between hot and cold, the density and volume of the filling liquid will change accordingly, causing the reading to deviate. Most current diaphragm seal pressure transmitters rely on built-in advanced algorithms to do this. With the 4-20mA HART protocol, we can directly read the internal diagnostic data and secondary temperature sensor values, and fine-tune the deviation on the digital side. Finally, the integrity of the process connection must be guaranteed to be absolutely leak-free, so that the entire system can withstand the stringent tests of food-grade hygiene standards or the oil and gas industry.
