How To Fix A Pressure Gauge

The key to repairing a pressure gauge is to first understand the problem: is the throttle hole blocked, the needle stuck, or the range is off.

First, unscrew the gauge and take a thin piece of wire or use an air gun to open the connector hole (that is, the air inlet). The debris accumulated there is the number one culprit for inaccurate readings. Secondly, if the pressure-leaked needle does not return to zero, find the front of the dial or the zeroing screw on the back and manually calibrate the starting position. Third, if the needle is completely immobilized, you must carefully remove the transparent cover and check the internal mechanisms ——especially the gears and shaft pins—— to see if there is any rust or jamming. A small drop of silicon-based lubricating oil can usually save the needle.

But I must remind you that if the Bourdon tube (that C-shaped induction element inside) is cracked or obviously deformed, don’t fix the gauge and just throw it away. It has become a safety hazard in this situation and the readings are simply not credible. When you finally put it back together, remember to re-wrap the raw material belt on the threads. If it leaks, your work will be in vain in the past half day.

Whether dealing with air presses, pool filtration systems or industrial equipment, pressure gauge strikes not only affect efficiency but can also lead to safety accidents.

Step 1. Identify The Root Cause Of The Disease

Before you do it, you have to decide which kind of “death method” it is. Failures generally don’t escape these three categories:

• Blockage: The dirt seals the road and the pressure cannot be transmitted to the sensing element.
• Zero drift: The internal parts are displaced and the pointer cannot return to zero when there is no pressure.
• Mechanical friction: Dust or slight rust has “bitten” the gears and hands.

Step 2: Clean The Clogged Interface And Throttle Hole

Many so-called “dead gauges” are not actually broken, they are just blocked. Over time, mineral scale or impurities can easily get stuck in the small holes of the connector.

How to do it: Unscrew the table from the system and stare carefully at the little eye at the bottom of the threaded interface.

Repair trick: Find a thin, hard steel wire or blow it with compressed air to remove the sediment inside. As long as the path to the internal institutions is smooth, the gauge can usually be revived immediately.

Step 3: Calibrate The Zero Position

If your table still reacts, but the pointer does not survive to zero after the system pressure is released, it is generated “zero drift”. This is a common occurrence on those vibrating devices.

How to operate: Look for an inconspicuous zeroing screw on the front of the dial or the back of the case.

Repair trick: Take a precision screwdriver and turn the screw little by little until the pointer is firmly aligned with the zero scale. This step is to realign the starting position to ensure that the PSI reading measured later is the true value relative to atmospheric pressure.

Step 4: Solve Pointer Jamming And Internal Friction

If the needle stumbles when it walks, or if the pressure changes and it dies there, 80% of the time “the internal organs” are stuck.

How to operate: Carefully pry open or unscrew the transparent gauge cover to expose the dial.

Repair Tips: Check the gears and shaft teeth for dust or rust. Sometimes the hands just rub against the dial and just dial it straight. To make it spin smoother, add a small drop of silicone-based lubricant to the gear bite. Don’t use regular motor oil, that thing will turn into mud over time.

Step 5. Boden Tube Damage

While many minor issues can be fixed, if the Bourdon tube (the C-shaped sensor inside the case) breaks, that’s the end of the job.

Red flags: If you find that this tube has burst, grown hair (corrosion), or become permanently deformed due to overpressure, the gauge is completely useless.

Safety first: A broken Bourdon tube pressure gauge not only reads in a fabricated manner, but can also leak or even explode at any time, which is a real hidden danger. When you encounter this situation, don’t hesitate, get a new one immediately, safety is more important than saving those few dollars.

Step 6. Properly Put Back Together To Ensure Sealing

After fixing it, the last step is to install it back on the device securely and properly.

How to do it: Clean any old sealant that remains on the joint threads.

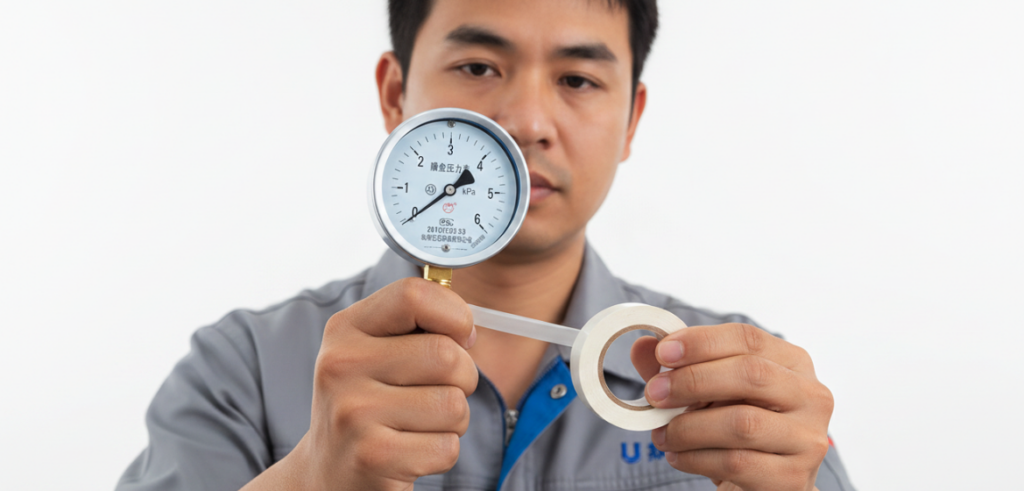

Repair trick: You must re-wrap the raw material tape (PTFE tape), remember to wrap it in the direction of thread screwing. This ensures that the connection does not drip, otherwise even a little leakage will bias your reading.
